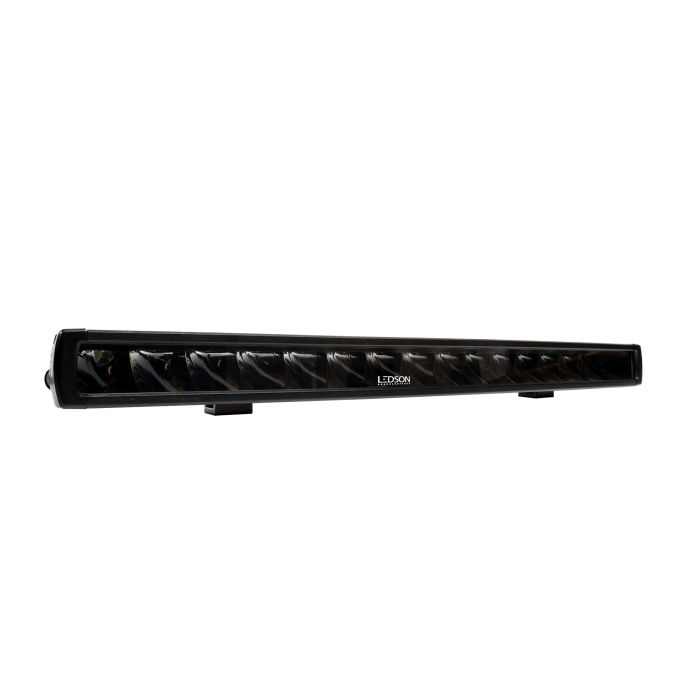

Apollo C LED bar 21" 105W (Curved, Driving Beam)
✓ Comes with a raw design with lots of light!
✓ With curved design for an attractive look on the vehicle
✓ E-marked ECE R112 / R10, 480 m (1 lux)
Apollo C LED bar with curved design
Apollo C delivers plenty of light with an astonishing design!
Curved design (C = Curved) with Driving Beam light pattern (Drive)
A curved bar often looks more neatly mounted on the vehicle as many cars have a slightly curved front that a curved bar matches nicely.
The Driving Beam "mimics" the vehicle's regular light pattern. You will thus get a similar light scatter to your existing vehicle's dipped- & high beam but amplified.
What more is needed?
- Ledson Connect: We strongly recommend using our Ledson Connect with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between the bar and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
Detailed installation instructions are included with the DT relay. - Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother with the help of a license plate holder or pipe bracket. See our various accessories for mounting options.
Features:
- Curved design that matches cars with curved front
- Driving Beam light pattern (wide and oblong)
- E-marked (E9, ref. 45), ECE R112/R10 - Read more about UNECE regulations here
- CISPR25 class 3 (EMC secured)
- 6669 lumen (raw), 3928 lumen (actual)
- Color temperature 6000K (cold white)
- Range 750 m (0,25 lux), 480 m (1 lux)
- Double mounting options
Technical data:
- 105W (15 x 7 W Cree LED)
- IP69K: withstands hot water under pressure
- Aluminum casing and polykarbonate lens
- Side-reflecting optic system
- Electric Thermal Management (ETM)
- 6,63 A at 12 V and 3,61 A at 24 V
- DT connector
- Pressure relief membrane
Supplied:
- Apollo C LED bar
- Side mounted brackets
- Slideable brackets for standing or hanging mount
- Butls and screws
- DT connector
- Installation manual
Measure & weight:
- Width: 535 mm
- Height: 46 mm
- Depth: 70 mm
- Depth of curved recession: 7 mm
- Weight: 1,56 kg
NOTE: The DT connector must not be cut as it involves an increased risk of moisture damage and the guarantee then expires. DT connector (male) with joints included with the product.
Number of contacts | 1 x DT-connector |
---|---|
Tillverkare | Ledson |
Power usage 12V/24V | 6,63 A vid 12 V och 3,61 A vid 24 V |
Height | 46 mm |
Width | 535 mm |
Depth | 70 mm (exkl fästen) |
Light flux | 6669 lumen (teoretiska), 3928 lumen (faktiska) |
Cable length | 530mm |
Warranty | 36 Months |
Unit | st |
