CANNECT contactless reader

Intended for installing a CANNECT interface for high beam control (item no. 7800240) and wish to use a contact-free reader.

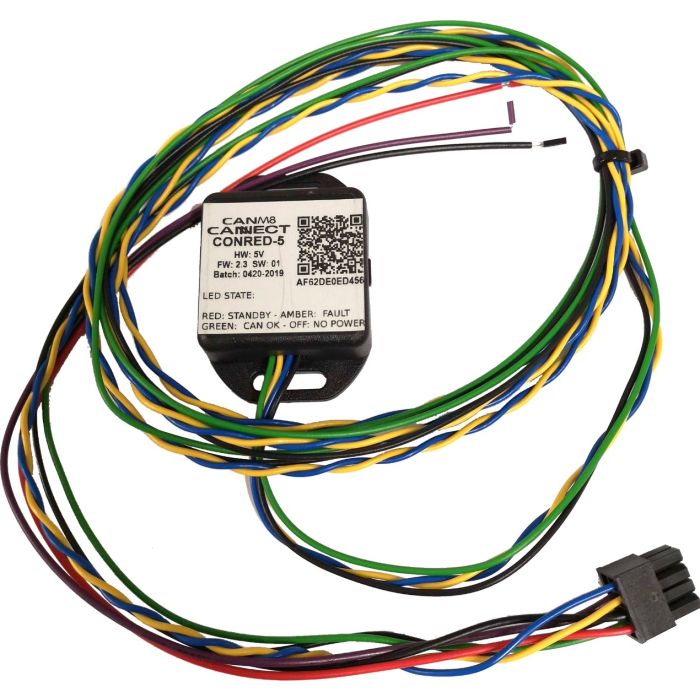

The Contact-less Reader option allows the CAN Bus interface to read vehicle CAN Bus data without any actual metal to metal connection between the interface and the vehicle CAN Bus. The reader is secured around a section of the vehicle CAN Bus wiring and data is read by an induction method, thus protecting any manufacturers warranty.

This particular version of Contact-less Reader is compatible with any vehicle operating between 12-30v. The Contact-less reader is supplied with a regulator unit that will convert an 12-30v supply from the vehicle, into a 5v power source to power the Contact-less Reader. This enables the Contact-less Reader to work with any telematics device or aftermarket systems fitted to the vehicle.

The readers feature a strong locking clamp to retain their position around the CAN wiring. The CAN wiring must first be straightened for a short distance and the HI - LO wires identified and placed in to the corresponding channels of the reader before the reader housing can be closed over the wiring.

Cable length: 1 meter

Installation

On the "back" of the small box there are two screws that allow you to remove the lid. Along the cover and also the circuit board, you can see where to lay the CAN-Hi or CAN-Lo cables (there is text on both the circuit board and the cover). Then screw the cover back on and connect the reader to the Cannect box, + 12V on the Red, Ground on the Black and signal to the relay set on the Purple cable.
