Ledson logo

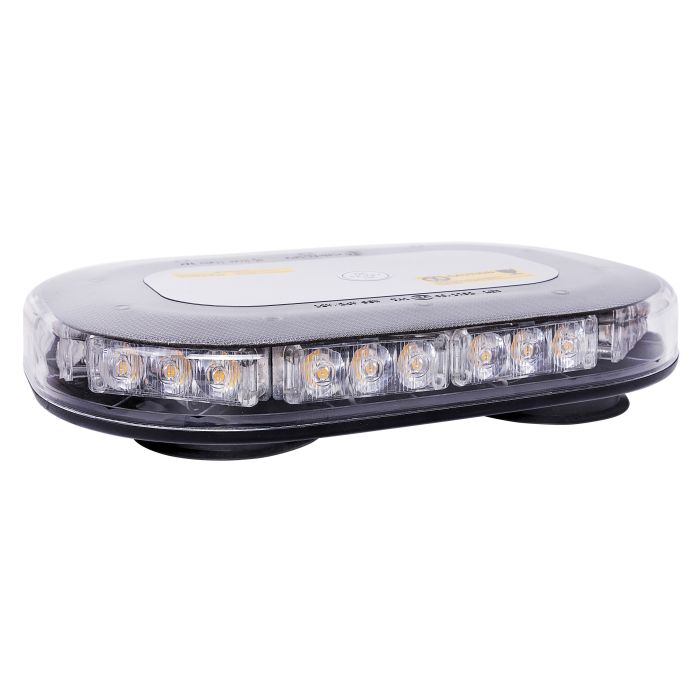

OptoGuard Defender Warning Light LED Bar 90W (ECE R65/R10, Cig plug) - 250 mm

€203.39 €162.71
€203.39 /piece €162.71 /piece
Retailer price €203.39 /piece Retailer price €162.71 /piece
In stock
SKU
5130253

OptoGuard Defender is of slim design and comes with a full 36 month warranty!
 Warning light bar equipped with strong 3W LED for excellent visibility
 250 mm in length, connected with cig plug and equipped with bracket + magnetic bracket

Ledson OptoGuard Defender Strobe Bar - Modern, low-profile, slim (only 40 mm high + 210 mm wide), with strong 3W LEDs which makes your warning light bar visible even during the bright day! Approved according to ECE R65 and EMC-secured ECE R10

This warning flash LED light bar is approved according to ECE R65 and EMC-secured ECE R10 and comes with a full 36 month warranty.

 Installation instructions (PDF)





For length 250 mm and 365 mm:

  • Connection: With cig plug (control the strobe patterns with a button)
  • Mounting: Magnetic bracket (250 mm has two magnetic feet, 365 mm has four magnetic feet)

For length 834 mm or longer:

  • Connection: Directly via the supplied 3 meter cable with the associated connection box to separate switches (optional accessory) to control individual functions. As an accessory, we can also offer a separate control box that can easily utilize all 29 strobe bar flash patterns: Control box (part 5130001)
  • Mounting: Supplied stainless universal brackets or via our model-fitted brackets for some of the common car models (below)

Model-adapted roof brackets are available for your warning light LED bar, custom-made with exact dimensions for the below car models:

  • VW Amarok from 2011 and newer
  • VW Caddy from 2004 and newer
  • VW Transporter T5 / T6 from 2003 and newer
  • Ford Ranger from 2011 and newer
  • Ford Transit from 2014 and newer
  • Ford Transit Connect from 2014 and newer
  • Ford Transit Custom from 2013 and newer
  • MB Sprinter, Vito, V250
  • Universal for rails



Specifications:

  • E-marked: ECE R65
  • EMC-secured: ECE R10
  • Clear polycarbonate lens
  • Heavy-duty aluminum frame for good heat dissipation and stability
  • Well thought out design
  • Service friendly with easily replaceable modules
  • Temperature range -30 to +60
  • Strobe patterns: 26 or 29 different (depending on length)
  • LEDs: 30 to 180 x 3W (depending on length)
  • Power: 90W-540W (depending on length)
  • Color glass: Clear glass
  • Color LED: Orange
  • IP-classification IP67
  • Voltage: 9-33 V
  • 36 month warranty



Measure:

  • Length: 250 mm to 2022 mm (choose length in the list)
  • Width: 210 mm
  • Height: 40 mm
  • Height (incl. Feet): 90 mm
  • Cable length: 3 meters
Technical information
Area of use Outdoor use
Length 250 mm (ciggplugg)
Warranty 36 Months
Color Orange
Manufacturer Ledson
Glass Clear
Height 40 mm (90 mm inkl fötter)
Length (mm) 250 mm
Width 210 mm
Unit st
Controller Nej
Fitting Universal mount (supplied)
Cable length 3 meter
