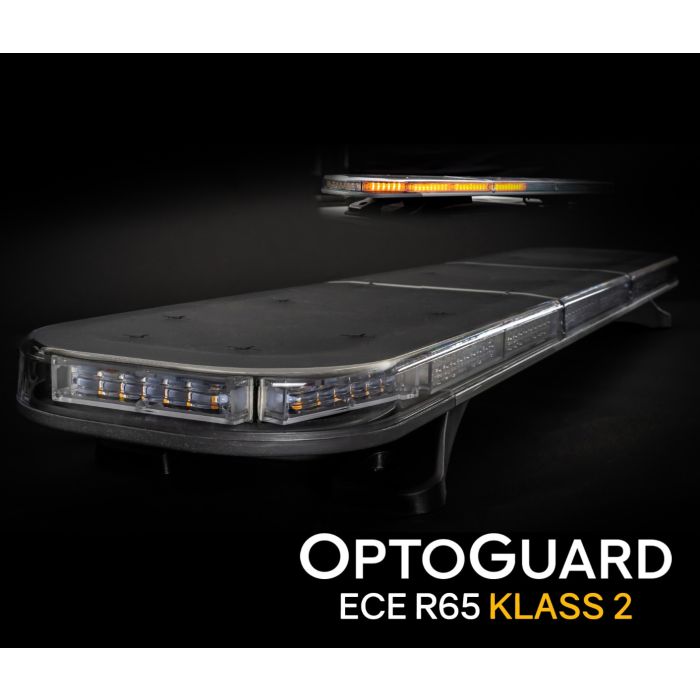

OptoGuard Defender Warning Light LED Bar (ECE R65 Class 2)

LEDSON OPTOGUARD DEFENDER warning light strobe bar ECE R65 class 2 - With a modern, slim look (only 40 mm high + 210 mm wide), and with strong 3W LED Ledson Optoguard make sure you will be visible in traffic even during daytime. The Class 2 upgrade gives you two different lights intensities, one stronger light to use during the day and one with lesser light to use in the evening and night.

Installation instructions (PDF)

This warning flash LED light bar is approved according to ECE R65 and EMC-secured ECE R10 and comes with a full 36 month warranty.

For length 834 mm or longer:

• Connection: Directly via the supplied 3 meter cable with the associated connection box to separate switches (optional accessory) to control individual function or with the supplied control box that can easily utilize all 29 strobe bar flash patterns.
• Mounting: Supplied stainless universal brackets or via our model-fitted brackets for some of the common car models (below)

Loose wiring and 1 x R65 warning light pattern:

• 834 mm, 1132 mm, 1429 mm, 1726 mm and 2022 mm is also available with 4-wire, loose cable (no control box) and with only one flashlight pattern, which of course also is R65 class 2 approved.

Model-adapted roof brackets are available for your warning light LED bar, custom-made with exact dimensions for the below car models:

• VW Amarok from 2011 and newer
• VW Caddy from 2004 and newer
• VW Transporter T5 / T6 from 2003 and newer
• Ford Ranger from 2011 and newer
• Ford Transit from 2014 and newer
• Ford Transit Connect from 2014 and newer
• Ford Transit Custom from 2013 and newer
• MB Sprinter, Vito, V250
• Universal for rails

Specifikations:

• E-marked: ECE R65 class 2 - Read more about UNECE regulations here
• Class 2 products have two different light intensities, one stronger for daytime use and one with lesser light to use during the evening and night
• EMC-secured: ECE R10
• Clear polycarbonate lens
• Heavy-duty aluminum frame for good heat dissipation and stability
• Well thought out design
• Service friendly with easily replaceable modules
• Temperature range -30 to +60
• Strobe patterns: 26 or 29 different (depending on length)
• LEDs: 108 to 180 x 3W (depending on length)
• Power: 324W-540W (depending on length)
• Color glass: Clear glass
• Color LED: Orange
• IP-classification IP67
• Voltage: 9-33 V
• 36 month warranty

Measure:

• Length: 834 mm to 2022 mm (choose length in the list)
• Width: 210 mm
• Height: 40 mm
• Height (incl. Feet): 90 mm
• Cable length: 3 meters
