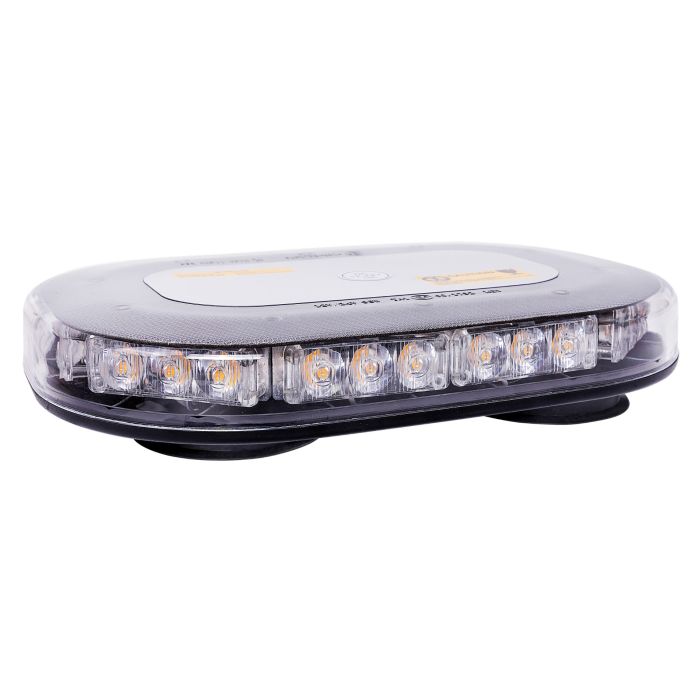

OptoGuard Defender Warning Light LED Bar (ECE R65/R10, Cig plug)

Ledson OptoGuard Defender Strobe Bar - Modern, low-profile, slim (only 40 mm high + 210 mm wide), with strong 3W LEDs which makes your warning light bar visible even during the bright day! Approved according to ECE R65 and EMC-secured ECE R10

This warning flash LED light bar is approved according to ECE R65 and EMC-secured ECE R10 and comes with a full 36 month warranty.

 Installation instructions (PDF)

For length 250 mm and 365 mm:

• Connection: With cig plug (control the strobe patterns with a button)
• Mounting: Magnetic bracket (250 mm has two magnetic feet, 365 mm has four magnetic feet)

Specifications:

• E-marked: ECE R65 - Read more about UNECE regulations here
• EMC-secured: ECE R10
• Clear polycarbonate lens
• Heavy-duty aluminum frame for good heat dissipation and stability
• Well thought out design
• Service friendly with easily replaceable modules
• Temperature range -30 to +60
• Strobe patterns: 26 different (depending on length)
• LEDs: 30 to 180 x 3W (depending on length)
• Power: 90W-126W (depending on length)
• Color glass: Clear glass
• Color LED: Orange
• IP-classification IP67
• Voltage: 9-33 V
• 36 month warranty

Measure:

• Length: 250 mm
• Width: 210 mm
• Height: 40 mm
• Height (incl. Feet): 90 mm
• Cable length: 3 meters
