LEDSON OptoGuard Warning Light LED Bar (ECE R65/R10)

€0.00 €0.00
€0.00 €0.00
Retailer price €0.00 Retailer price €0.00
Product no longer in stock
SKU
1361000

✓ OptoGuard is of slim design and comes with a full 36 month warranty!
✓ Warning light bar equipped with strong 3W LED for excellent visibility
✓ Approved with E-marking ECE R65 and EMC-secured ECE R10

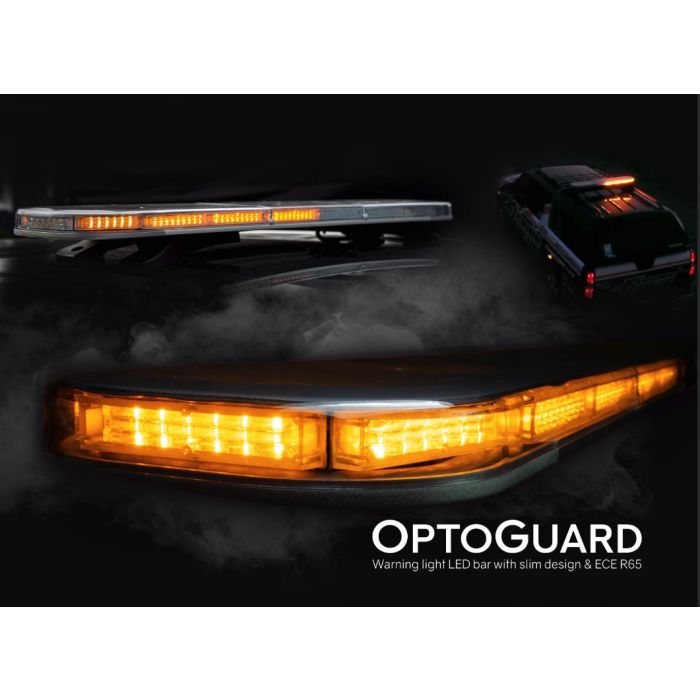

Ledson OptoGard Strobe Bar - Modern, low-profile, slim (only 40 mm high + 210 mm wide), with strong 3W LEDs which makes your warning light bar visible even during the bright day! Approved according to ECE R65 and EMC-secured ECE R10

This warning flash LED light bar is approved according to ECE R65 and EMC-secured ECE R10 and comes with a full 36 month warranty.

 Installation instructions (PDF)





For length 834 mm or longer:

  • Connection: Directly via the supplied 3 meter cable with the associated connection box to separate switches (optional accessory) to control individual functions. As an accessory, we can also offer a separate control box that can easily utilize all 29 strobe bar flash patterns: Control box (part 5130001)
  • Mounting: Supplied stainless universal brackets or via our model-fitted brackets for some of the common car models (below)

Model-adapted roof brackets are available for your warning light LED bar, custom-made with exact dimensions for the below car models:

  • VW Amarok from 2011 and newer
  • VW Caddy from 2004 and newer
  • VW Transporter T5 / T6 from 2003 and newer
  • Ford Ranger from 2011 and newer
  • Ford Transit from 2014 and newer
  • Ford Transit Connect from 2014 and newer
  • Ford Transit Custom from 2013 and newer
  • MB Sprinter, Vito, V250
  • Universal for rails



Specifications:

  • E-marked: ECE R65 - Read more about UNECE regulations here
  • EMC-secured: ECE R10
  • Clear polycarbonate lens
  • Heavy-duty aluminum frame for good heat dissipation and stability
  • Well thought out design
  • Service friendly with easily replaceable modules
  • Temperature range -30 to +60
  • Strobe patterns: 26 or 29 different (depending on length)
  • LEDs: 30 to 180 x 3W (depending on length)
  • Power: 90W-540W (depending on length)
  • Color glass: Clear glass
  • Color LED: Orange
  • IP-classification IP67
  • Voltage: 9-33 V
  • 36 month warranty



Measure:

  • Length: 250 mm to 2022 mm (choose length in the list)
  • Width: 210 mm
  • Height: 40 mm
  • Height (incl. Feet): 90 mm
  • Cable length: 3 meters
Technical information
Length 834 mm (29 blixtmönster)
Glass Clear
Fitting Ford Transit Custom 2013+ newer
Controller Ja
Manufacturer Ledson
Color Orange
Warranty 36 Months
Cable length 3 m
Width 210 mm
Length (mm) 250 mm till 2022 mm beroende på modell
Cable length 3 meter
Height 40 mm (endast blixtljusramp), 90 mm (med fötter)
