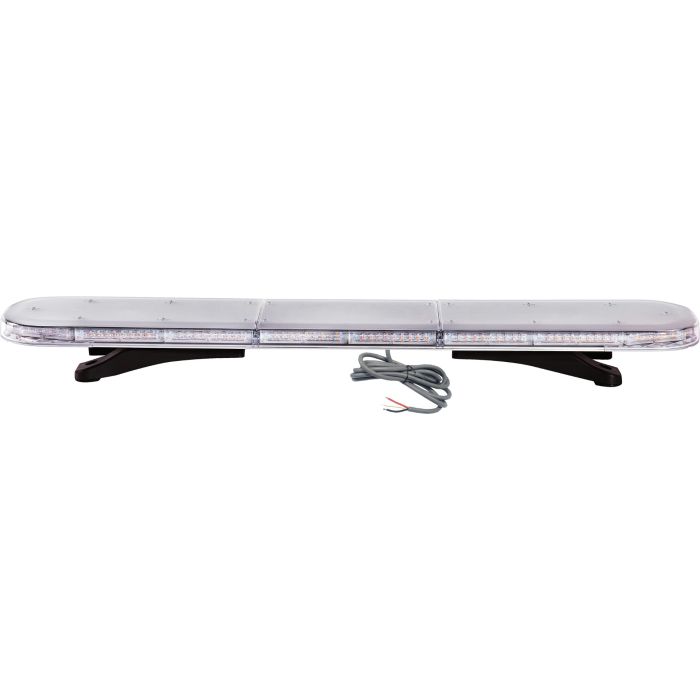

Ledson OptoGuard Flashlight ramp L-series (3-wire cable) (ECE R65/R10)

From €0.00 From €0.00
From €0.00 From €0.00

Save €0

Save €0

SKU
1360500

 OptoGuard L-series, slim with 36 months warranty!
 With 1 x flashlight pattern (R65 approved)
Connected directly via 3-wire cable

Ledson OptoGuard Flashlight ramp L-series (3-wire cable) - Modern, slim with low profile (only 40 mm high + 210 mm wide), with strong 3W LEDs that make your warning light visible even during the day! Equipped with only one flashlight pattern, which is R65 approved. The ramp is also EMC-secured according to ECE R10 and comes with a 36-month warranty!

Connection: This L-series is connected with a 3-wire cable and controlled without a control box. It provides a very simple connection if you are only looking for a flashlight pattern and simple functionality.







Specifications:

  • E-marked: ECE R65 - Read more about UNECE regulations here
  • EMC-secured: ECE R10
  • Lens in clear polycarbonate
  • Frame in strong aluminum for good heat dissipation and stability
  • Well thought out construction
  • Service-friendly with easily replaceable modules
  • Temperature range -30 to +60
  • Flash pattern: One (R65 approved)
  • Number of LEDs: 108 to 180 x 3W (depending on length)
  • Power: 324 W to 540 W (depending on length)
  • Color glass: Clear glass
  • Color LED: Orange
  • Voltage: 9-33 V
  • IP rating IP67 (waterproof) - Read more here
  • 36 month warranty



Measurements:

  • Length: 834 mm to 1429 mm (select length from the list)
  • Width: 210 mm
  • Height: 40 mm
  • Height (incl. Feet): 90 mm
  • Cable length: 3 meters

Model-adapted roof mounts are available for your flashlight ramp, specially developed by us at Diodhuset with four mounting points on each side to fit Ledson Optoguard in an optimal way. This makes the assembly extra stable compared to universal brackets.

Model-adapted mounts are available for the following car and truck models:

  • VW Amarok from 2011 and newer
  • VW Caddy from 2004 and newer
  • VW Transporter T5 / T6 2003 and newer
More Information
Color Orange
Warranty 36 Månader
Manufacturer Ledson
Glass Clear
Length (mm) 834 mm
Width 210 mm
Height 40 mm (endast blixtljusramp), 90 mm (med fötter)
Cable length 3 meter
Cable length 3 m
Controller Nej
