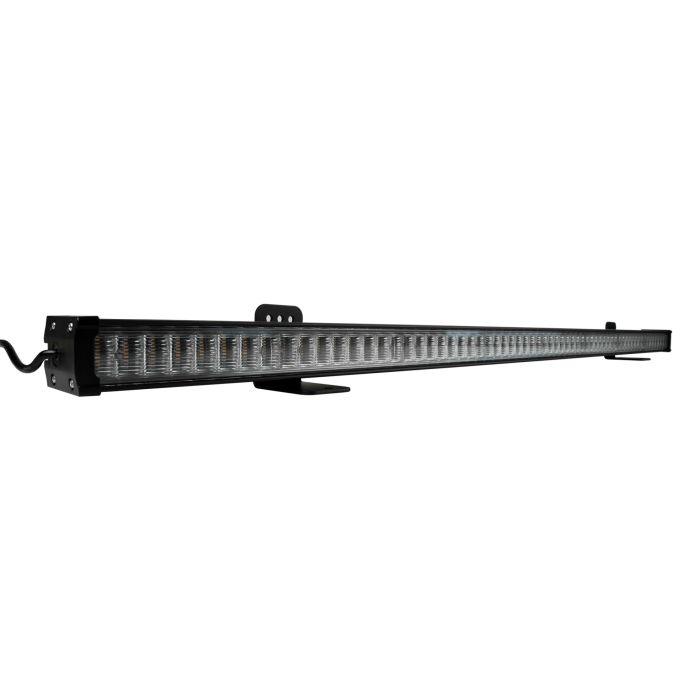

OptoGuard Shield warning light LED bar with traffic advisor

€290.79 €232.63
€290.79 €232.63
Retailer price €290.79 Retailer price €232.63
In stock
SKU
5141173

Shield warning light LED bar with directional, running light
 ECE R65 Class 2, SAE J595 Class 1, ECE R10
 15 flash patterns for traffic routing

Ledson warning light LED bar OptoGuard Shield equipped with flowing / running light patterns for traffic routing! The 15 different flash patterns are controlled with an included control box with 5 meter cable. The warning light is synchronizable with multiple units.

See model specifikt roof brackets here.

Specifications:

  • 15 different flash patterns in orange light
  • E-marked ECE R65 klass 2 - Read more about UNECE regulations here
  • E-marked SAE J595 klass 1
  • EMC-secured ECE R10
  • IP rating IP67 (waterproof and dustproof)
  • 64 pcs LED
  • Voltage: 9-30V
  • Synchronizable with multiple devices
  • Memory function
  • Reverse polarity protection



Measurements:

  • Width: 1176 mm
  • Height: 59 mm
  • Depth: 46 mm
  • Cable length to the control: 5 meters



Included:

  • Warning light LED bar for traffic routing
  • Control box with 5 meter cable
  • Brackets and screws
  • Installation instructions (PDF)



Control box:

  • Off and on
  • Previous pattern
  • Next pattern
  • Night mode
  • Day mode
  • Left arrow
  • Middle to side arrow
  • Right arrow
  • Steady on
  • Off and on (auxiliary device)



Technical information
Manufacturer Ledson
Color Orange
Warranty 24 Months
Width 56 mm
Unit st
Cable length 5 meter
Height 46 mm
Length (mm) 1176 mm
