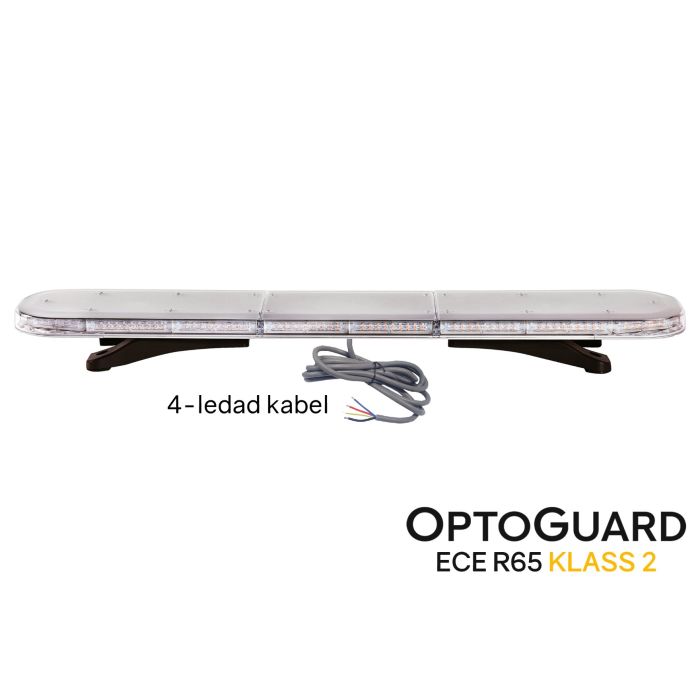

OptoGuard Defender Warning Light LED Bar ECE R65 class 2 (4 wire cable)

From €611.19 €488.95
From €611.19 From €488.95
Retailer price From €611.19 Retailer price From €488.95
SKU
1361200

✓ If you only need one R65-rated pattern
✓ Class 2 R65 approved - can be switched between day / night mode
✓ Smooth connection via a 3m long 4-wire cable

Ledson OptoGuard Defender warning light LED bar ECE R65 class 2 with 4-wire cable - Modern, slim with low profile (only 40 mm high + 210 mm wide), with strong 3W LEDs that make your warning light visible even during the day! Equipped with only one flash pattern, which is R65-approved class 2. Class 2 means that the flash bar has the option of two different brightnesses, one for daylight and one for evening / night. This is controlled via two separate cables.

The warningbar is also EMC-secured according to ECE R10 and comes with a 36-month warranty!

Connection: This series is connected with a 4-wire cable and controlled without a control box. It provides a very simple connection if you are only looking for one flash pattern and simple functionality.







Specifications:

  • E-marked: ECE R65 class 2 - Read more about UNECE regulations here
  • EMC-secured: ECE R10
  • Lens in clear, unbreakable polycarbonate plastic
  • Stable chassi in aluminum
  • Frame in strong aluminum for good heat dissipation and stability
  • Well thought out construction
  • Service-friendly with easily replaceable modules
  • Temperature range -30 to +60
  • Flash pattern: One (R65-approved class 2)
  • Number of LEDs: 108 to 216 pcs x 3W (depending on length)
  • Power: 324 W to 648 W (depending on length)
  • Color of glass: Clear glass
  • Color LED: Orange
  • Voltage: 9-33 V
  • IP rating IP67 (water/dust tight)
  • 36 month warranty



Measure:

  • Length: 834 mm to 2022 mm
  • Width: 210 mm
  • Height: 40 mm
  • Height (incl feet): 90 mm
  • Cable length: 3 meters

Model-adapted roof mounts are available for your warning bar, specially developed by us at Diodhuset with four mounting points on each side to fit Ledson Optoguard in an optimal way. This makes the assembly extra stable compared to universal brackets.

Model-adapted mounts are available for the following car and truck models:

  • Ford Ranger 2011 and newer
  • Ford Transit 2014 and newer
  • Ford Transit Connect 2014 and newer
  • Ford Transit Custom 2013 and newer
  • MB Sprinter, Vito, V250
  • Scania 2017 and newer
  • Volvo FH4 ver. 4
  • VW Amarok frÃ¥n 2011 and newer
  • VW Caddy frÃ¥n 2004 and newer
  • VW Crafter / Nissan Navara
  • VW Transporter T5 / T6 2003 and newer
  • Universal for rails



Available as:

  • 834 mm (part 5120083)
  • 1132 mm (part 5120113)
  • 1429 mm (part 5120143)
  • 1726 mm (part 5120172)
  • 2022 mm (part 5120202)
Technical information
Controller Nej
Glass Clear
Color Orange
Warranty 36 Months
Manufacturer Ledson
Length (mm) 2022
Width 210 mm
Height 40 mm (endast blixtljusramp), 90 mm (med fötter)
Cable length 3 meter
