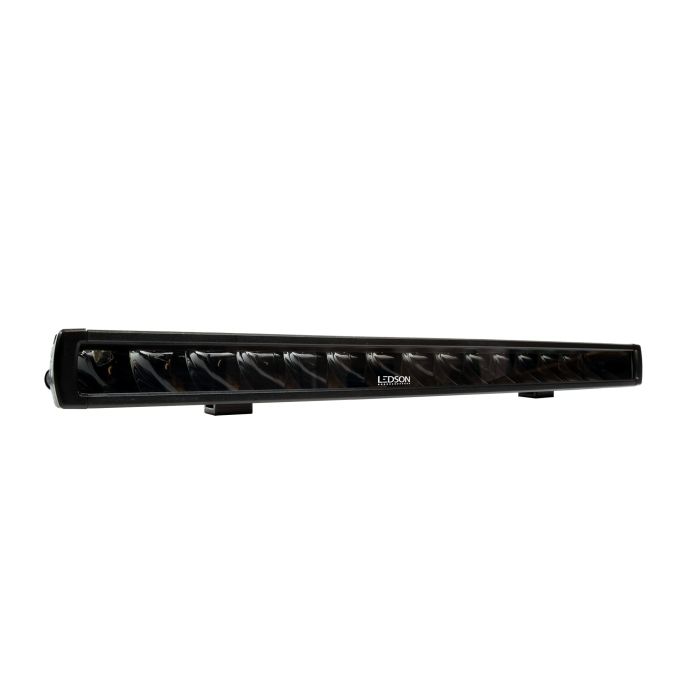

LEDSON Apollo C LED bar 21" 105W (Curved, Driving Beam) - DEMO

Demo unit with discounted price (regular price €213.09). The product has served as a display model in the store and has not been regularly used; however, there may be minor cosmetic imperfections. The original packaging for the product may be missing, but all accessories are included, and full warranty is provided.

Apollo C LED bar with curved design

Apollo C delivers plenty of light with an astonishing design!

Curved design (C = Curved) with Driving Beam light pattern (Drive)

A curved bar often looks more neatly mounted on the vehicle as many cars have a slightly curved front that a curved bar matches nicely.

The Driving Beam "mimics" the vehicle's regular light pattern. You will thus get a similar light scatter to your existing vehicle's dipped- & high beam but amplified.

What more is needed?

• DT-relay: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.
• Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother with the help of a license plate holder or pipe bracket. See our various accessories for mounting options.

Features:

• Curved design that matches cars with curved front
• Driving Beam light pattern (wide and oblong)
• E-marked (E9, ref. 45), ECE R112/R10
• CISPR25 class 3 (EMC secured)
• 6669 lumen (raw), 3928 lumen (actual)
• Color temperature 6000K (cold white)
• Range 750 m (0,25 lux), 480 m (1 lux)
• Double mounting options

Technical data:

• 105W (15 x 7 W Cree LED)
• IP68 (water-/ dust tight)
• IP69K: withstands hot water under pressure
• Aluminum casing and polykarbonate lens
• Side-reflecting optic system
• Electric Thermal Management (ETM)
• 6,63 A at 12 V and 3,61 A at 24 V
• DT connector
• Pressure relief membrane

Supplied:

• Apollo C LED bar
• Side mounted brackets
• Slideable brackets for standing or hanging mount
• Butls and screws
• DT connector
• Installation manual

Measure & weight:

• Width: 535 mm
• Height: 46 mm
• Depth: 70 mm
• Depth of curved recession: 7 mm
• Weight: 1,56 kg

NOTE: The DT connector must not be cut as it involves an increased risk of moisture damage and the guarantee then expires. DT connector (male) with joints included with the product.
