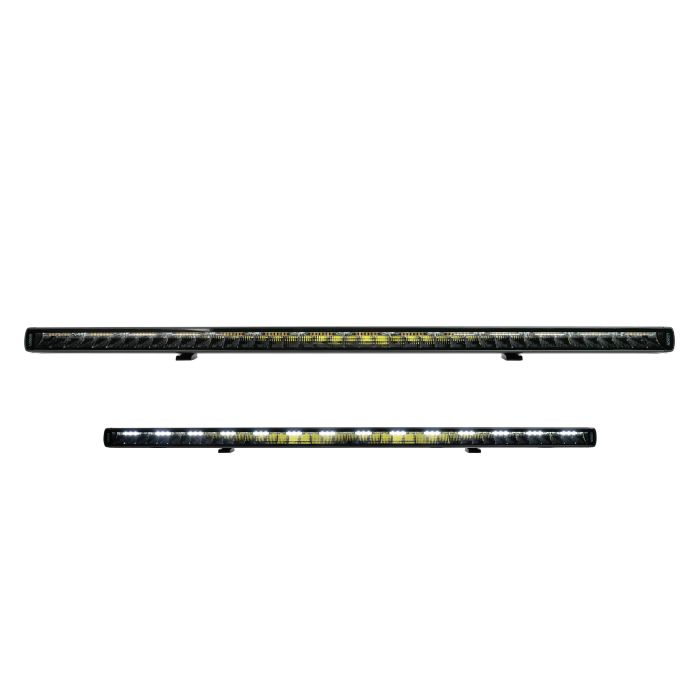

Phoenix+ LED bar 40" with strobe and white position light

Phoenix+ 40" (1022 mm)

Auxiliary light and warning light in one unit with this multifunctional Ledson bar! Now you no longer have to think about mounting several extra lights and a strobe / warning light, you save space and get a simplified installation.

The bar is available in three different sizes (20", 32" and 40") and therefore fits everything from transport vehicles to trucks and excavators - to meet your needs. All lengths are E-approved as auxiliary lights according to ECE R112 and have approved strobelight (ECE R65). They are also equipped with xenon white, which is optional to connect.

You get awesome strength in the high beam and a safer job on the road!

Characteristics:

• Driving Beam light image (wide and oblong)
• E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
• ECE R65 / R7 / R10 (EMC-rated)
• Range: 465 m (1 lux)
• Lumen: 17640 lm (theoretical), 6217 lm (actual)
• Color temperature 5700K (cold white)
• Strobelight: Orange (ECE R65)
• Position light: Xenon white (optional)

Technical data:

• 210 W (42 x OSRAM CSHP LED)
• IP69K: withstands hot water under pressure
• Aluminum housing and polycarbonate lens
• 2-pin DT connector (included)
• Voltage: 10-30V

Dimensions & weight (excl. Brackets):

• Width: 1005 mm
• Height: 40 mm
• Depth: 54 mm (excl. Bracket)
• Weight: 2600 grams

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
