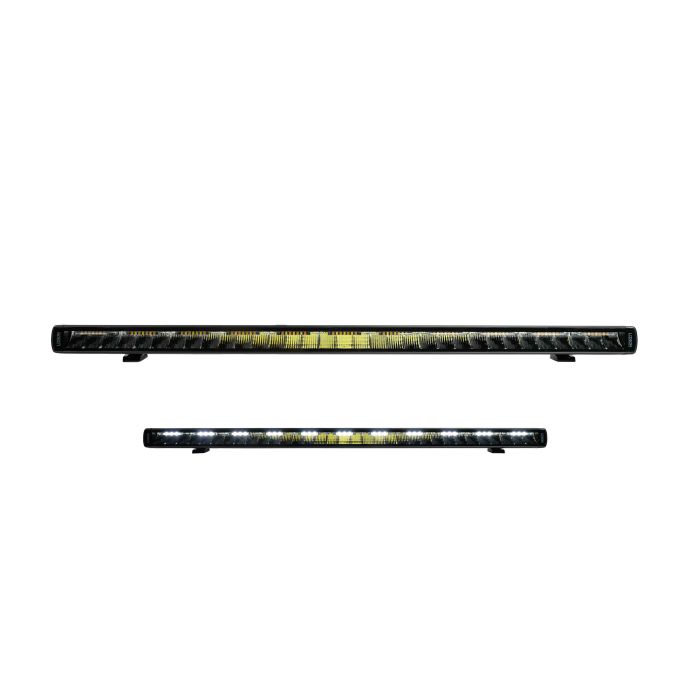

Phoenix+ LED bar 32" with strobe and white position light

Phoenix+ 32" (798 mm)

Auxiliary light and warning light in one unit with this multifunctional Ledson bar! Mount a LED bar with strobelight function and you save both valuable installation time and get a much cleaner look into the bargain!

The bar is available in three different sizes (20", 32" and 40") and therefore fits everything from transport vehicles to trucks and excavators - to meet your needs. All lengths are E-approved as auxiliary lights according to ECE R112 and have approved strobelight (ECE R65). They are also equipped with xenon white, which is optional to connect.

You get awesome strength in the high beam and a safer job on the road!

Characteristics:

• Driving Beam beam pattern (wide and oblong)
• E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
• ECE R65 / R7 / R10 (EMC-rated)
• Range: 449 m (1 lux)
• Lumen: 13860 lm (theoretical), 5583 lm (actual)
• Color temperature 5700K (cold white)
• Strobelight: Orange (ECE R65)
• Position light: Xenon white (optional)

Technical data:

• 165 W (33 x OSRAM CSHP LED)
• IP69K: withstands hot water under pressure - Read more about IP rating here
• Aluminum housing and polycarbonate lens
• 2-pin DT connector (included)
• Voltage: 10-30V

Dimensions & weight (excl. Brackets):

• Width: 798 mm
• Height: 40 mm
• Depth: 54 mm (excl. Bracket)
• Weight: 2100 grams

Cable colors:

• Green: Flash function
• Gray: White position light
• Yellow: not used

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
