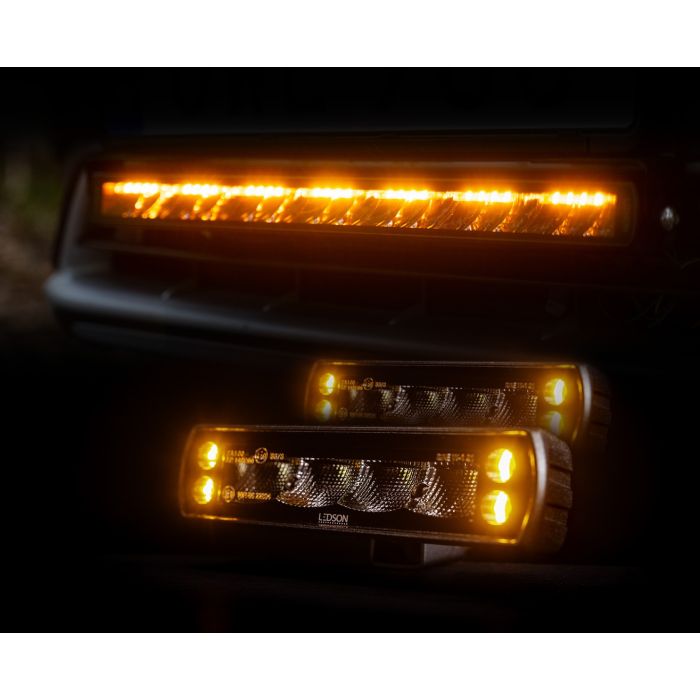

Package with Phoenix + 20" LED bar and 2 x Helix reverse light

This package includes Ledson Phoenix + 20" LED bar and two Ledson Helix reverse lights, both with built-in warning light so you can be seen properly and feel safe out on the roads.

The following is included:

• 1 x Phoenix+ 20" bar (part 33305215)
• 2 x Helix reverse light (part 33492418)
• 1 x holder (part 3346059)
• 1 x Ledson Connect with 1 x DT (part 7801002)
• 1 x locking strip (part 960202)

Also included:

• Bolts and screws for attaching the LED bar and reverse lights
• DT connectors are included with the bar and and reverse lights
• Installation instructions

Phoenix+ 20" LED bar with warning light

Characteristics:

• Combo Beam light image (wide and oblong)
• E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
• ECE R65 / R7 / R10 (EMC-rated)
• Range: 459 m (1 lux)
• Lumen: 8820 lm (theoretical), 3586 lm (actual)
• Color temperature 5700K (cold white)
• Strobelight: Orange (ECE R65)
• Position light: Xenon white alt. yellow/orange

Technical data:

• 105 W (21 x OSRAM CSHP LED)
• IP69K: withstands hot water under pressure
• Aluminum housing and unbreakable polycarbonate lens
• 4-pin DT connector (included)
• Voltage: 10-30V

Dimensions & weight (excl. Brackets):

• Width: 522 mm
• Height: 40 mm
• Depth: 54 mm (excl. Bracket)
• Weight: 1300 grams

Helix reverse light with warning light

Characteristics per reverse light:

• E-marked reverse light with approved warning light
• ECE R23, R65, R10, CISPR25 class 3
• Comes with bracket for standing / hanging & recessed mounting
• Flood beam pattern: 80° and 60°
• Lumen: 3200 (theoretical), 2700 (actual)
• Side reflecting optical system
• ETM (Electronic Thermal Management)
• Cold white light (6000K)

Technical data:

• 4 x 8 W LED (reverse light) + 4 x 3 W LED (warning light)
• Load 1,9 A at 12 V and 1 A at 24 V
• IP69K (water-/and dust proof)
• Voltage 9-36 V
• DT connector included

Measure:

• Width: 164 mm
• Height: 41 mm excl bracket
• Depth: 61 mm

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
