Helix reverse light with warning light

€96.59 €77.27
€96.59 €77.27
Retailer price €96.59 Retailer price €77.27
In stock
SKU
33492418
Rating:
100 % of 100

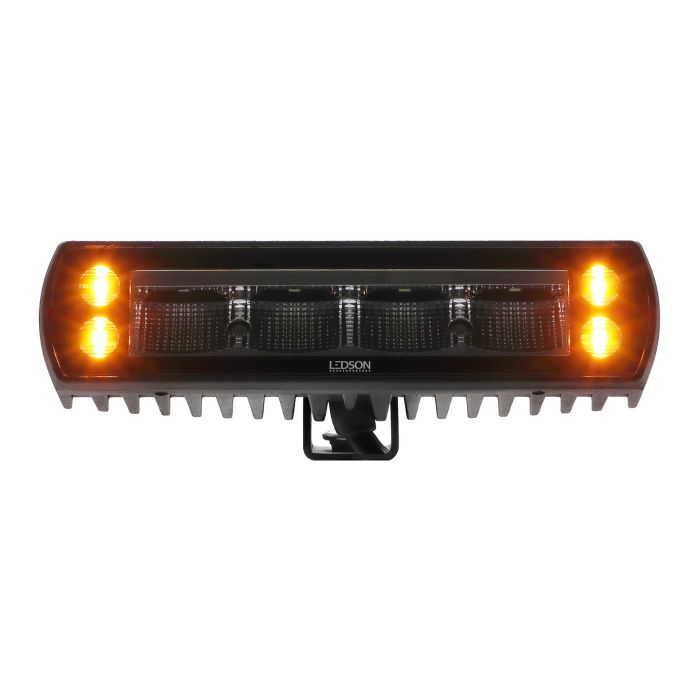

Helix reverse light with warning light
A multifunction that simplifies!
E-marked ECE R23 and R65

Ledson Helix is ​​an E-marked reverse light which, in addition to lighting up the area properly behind you, also has an approved warning light. With two functions in one light, you save space on the vehicle and simplify your installation!

Helix can be installed standing, hanging or with recessed mounting.



Characteristics:

  • E-marked reverse light with approved warning light
  • ECE R23, R65, R10, CISPR25 class 3
  • Comes with bracket for standing / hanging & recessed mounting
  • Flood beam pattern: 80° and 60°
  • Lumen: 3200 (theoretical), 2700 (actual)
  • Side reflecting optical system
  • ETM (Electronic Thermal Management)
  • Cold white light (6000K)



Technical data:

  • 4 x 8 W LED (reverse light) + 4 x 3 W LED (warning light)
  • Load 1,9 A at 12 V and 1 A at 24 V
  • IP69K (water-/and dust proof)
  • Voltage 9-36 V
  • DT connector included



Measure:

  • Width: 164 mm
  • Height: 41 mm excl bracket
  • Depth: 61 mm



NOTE: The DT connector must not be cut as it involves an increased risk of moisture damage and the guarantee then expires.

Technical information
Color Xenon white
Warranty 24 Months
Manufacturer Ledson
Unit st
Height 41 mm
Width 164 mm
Power usage 12V/24V 1,9 A vid 12 V och 1 A vid 24 V
Light flux Lumen: 3200 (teoretiska), 2700 (faktiska)
Diameter (mm) 61 mm
