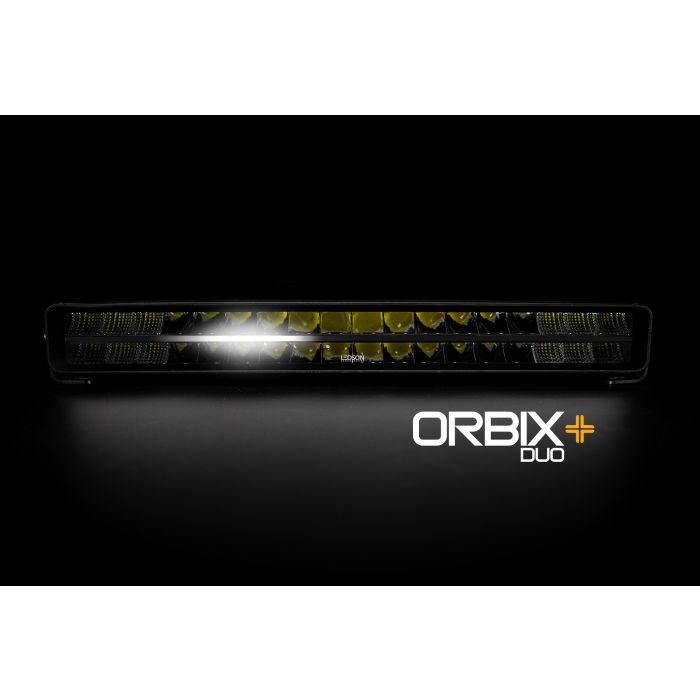

Orbix21+ Duo LED bar 180W

€310.19 €248.15
€310.19 €248.15
Retailer price €310.19 Retailer price €248.15
In stock
SKU
33503655

 Orbix21+ Duo makes you stand out
 Unique position light with dynamic ignition
 670 m (1 lux) and 13500 actual lumen



It's in the details - and this detail is a real eye-catcher! Orbix21+ Duo from Ledson is equipped with a modern position light with dynamic ignition.

Note: Available as a complete package here

The Orbix21+ position light ignites with a unique fluid motion that guides the light from one side of the bar to the other before lighting up. A dynamic sequence that makes you stand out from the crowd and elevates your vehicle's appearance to a whole new level.

The bar is E-marked according to ECE R149 and has a Drive beam pattern that optimally enhances your vehicle's existing high beam to reach both longer and wider. Of course, you can choose to have your position light in modern cool white or a rawer amber.

A high IP69K rating and aluminum housing with polycarbonate lens ensure Orbix+ gives you a safer drive and a better look, of course with Ledson's unbeatable 36 month warranty.



Driving Beam light pattern

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.



What more is needed? NOTE: Available as a complete package with holder and Ledson Connect here

  • Ledson Connect: We strongly recommend using our Ledson Connect with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between the bar and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
    Detailed installation instructions are included with the DT relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and nicer with the help of a number plate holder or pipe bracket. See our different accessories for mounting options. NOTE: specially adapted holder is available for this LED bar here: Holder for Orbix+ Duo 21"



Features:

  • Position light with dynamic ignition, which means that it lights up with a motion pattern
  • Selectable position light, white or amber
  • E-mark ECE R149/R10
  • ”Driving beam” light pattern (wide and elongated)
  • Range 670 m at 1 lux
  • 15120 lumen (raw), 13500 lumen (effective)
  • Color temperature 5700K (cool white)
  • Two mounting options



Technical data:

  • 180 W (36 x 5 W LED)
  • Voltage: 10-32V
  • IP69K (water / dust-tight)
  • Aluminum casing and polycarbonate lens
  • DT-connector 4-pin (included)



Supplied:

  • Orbix21+ Duo dual row LED bar
  • Side mounted feet
  • Slideable brackets (standing/hanging)
  • Bolts and screws to attach the bar to the desired surface
  • DT connector
  • Installation instructions



Dimensions & weight:

  • Width: 537 mm
  • Height: 63 mm
  • Depth: 70 mm
  • Weight: 2,91 kg

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint is included with the product.

Technical information
Beam pattern Driving beam
Funktion Extraljus
Voltage 10-32 V
Dimbar ja/nej No
Garanti 24 Månader
Lumen (actual) 13500
Lumen (theoretical) 15120
1 lux at xxx meters 670
Manufacturer Ledson
Light temperature (K) 5700K
Förpackningslängd 600
Förpackningsbredd (mm) 98
Förpackningshöjd/djup (mm) 131
Förpackningsvikt (gram) 3010
Stafflat / antal i en kartong 6
Light source LED
Amount of diodes 36
Manufacturer Ledson
Elektronisk värmekontroll (ETM) No
Tryckutjämningsmembran No
E-märkning Yes
Unit st
