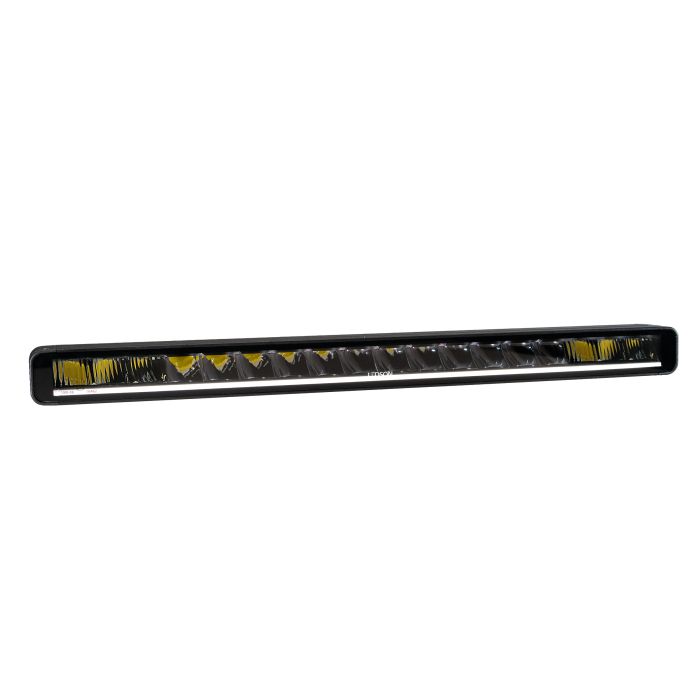

Orbix21+ LED bar 90W

€222.79 €178.23
€222.79 €178.23
Retailer price €222.79 Retailer price €178.23
In stock
SKU
33501855

 Orbix21+ makes you stand out
 Unique position light with dynamic ignition
 475 m (1 lux) and 6753 actual lumen



It's in the details - and this detail is a real eye-catcher! Orbix21+ (21") from Ledson is equipped with a modern position light with dynamic ignition.

The Orbix+ position light ignites with a unique fluid motion that guides the light from one side of the bar to the other before lighting up. A dynamic sequence that makes you stand out from the crowd and elevates your vehicle's appearance to a whole new level.

The bar is E-marked according to ECE R149 and has a Drive beam pattern that optimally enhances your vehicle's existing high beam to reach both longer and wider. Of course, you can choose to have your position light in modern cool white or a rawer amber.

A high IP69K rating and aluminum housing with polycarbonate lens ensure Orbix+ gives you a safer drive and a better look, of course with Ledson's unbeatable 36 month warranty.



Driving Beam light pattern

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.



What more is needed?

  • Ledson Connect: We strongly recommend using our Ledson Connect with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between the bar and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
    Detailed installation instructions are included with the DT relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and nicer with the help of a number plate holder or pipe bracket. See our different accessories for mounting options. NOTE: specially developed holder is available for this LED bar here: Holder for Orbix21+



Features:

  • Position light with dynamic ignition, which means that it lights up with a motion pattern
  • Selectable position light, white or amber
  • E-mark ECE R149/R10
  • ”Driving beam” light pattern (wide and elongated)
  • Range 475 at 1 lux (950 m at 0,25 lux)
  • 7560 lumen (raw), 6753 lumen (effective)
  • Color temperature 5700K (cool white)
  • Two mounting options



Technical data:

  • 90 W (18 x 5 W LED)
  • Voltage: 10-32V
  • IP69K (water / dust-tight)
  • Aluminum casing and polycarbonate lens
  • DT-connector 4-pin (included)



Supplied:

  • Orbix21+ single row LED bar
  • Side mounted feet
  • Slideable brackets (standing/hanging)
  • Bolts and screws to attach the bar to the desired surface
  • DT connector
  • Installation instructions



Dimensions & weight:

  • Width: 534 mm
  • Height: 42 mm
  • Depth: 58 mm
  • Weight: 1,93 kg

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint is included with the product.

Technical information
Light source LED
Start time, cold to full Omedelbar
Beam pattern Driving beam
Garanti 24 Månader
Function Auxiliary light
Voltage 10-32 V
Manufacturer Ledson
E-märkning Yes
Manufacturer Ledson
Depth (mm) 58
Height 42
Längd (mm) 534
Weight (grams) 1930
1 lux at xxx meters 475 m
Ljustemperatur 5700K
Unit st
Dimbar ja/nej No
Förpackningslängd 590
Förpackningsbredd (mm) 107
Förpackningshöjd/djup (mm) 71
Förpackningsvikt (gram) 2002
Stafflat / antal i en kartong 12
Amount of diodes 18
