Complete Orbix21+ Duo LED bar kit (12V)

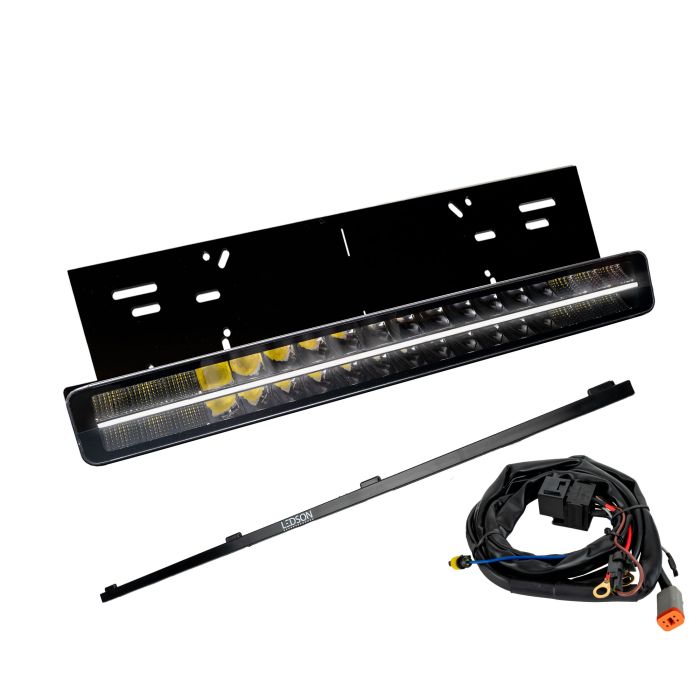

The following is included in the package:

• 1 x 21" Orbix21+ Duo LED bar (part 33503655)
• 1 x custom made holder (part 3346077)
• 1 x Ledson Connect (part 7801004)
• 1 x locking strip (part 960201)

Orbix21+ Duo LED bar with dynamic position light

It's in the details - and this detail is a real eye-catcher! Orbix21+ Duo (21") from Ledson is equipped with a modern position light with dynamic ignition.

The Orbix+ position light ignites with a unique fluid motion that guides the light from one side of the bar to the other before lighting up. A dynamic sequence that makes you stand out from the crowd and elevates your vehicle's appearance to a whole new level.

The bar is E-marked according to ECE R149 and has a Drive beam pattern that optimally enhances your vehicle's existing high beam to reach both longer and wider. Of course, you can choose to have your position light in modern cool white or a rawer amber.

A high IP69K rating and aluminum housing with polycarbonate lens ensure Orbix+ gives you a safer drive and a better look, of course with Ledson's unbeatable 36 month warranty.

Driving Beam light pattern

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.

Features:

• Position light with dynamic ignition, which means that it lights up with a motion pattern
• Selectable position light, white or amber
• E-mark ECE R149/R10
• ”Driving beam” light pattern (wide and elongated)
• Range 590 m at 1 lux
• 15120 lumen (raw), 13500 lumen (effective)
• Color temperature 5700K (cool white)
• Two mounting options

Technical data:

• 180 W (36 x 5 W LED)
• Voltage: 10-32V
• IP69K (water / dust-tight)
• Aluminum casing and polycarbonate lens
• DT-connector (included)

Supplied (besides the holder and DT relay):

• Orbix21+ 21" dual row LED bar
• Side mounted feet
• Slideable brackets (standing/hanging)
• Bolts and screws to attach the bar to the desired surface
• DT connector
• Installation instructions

Dimensions & weight (only LED bar):

• Width: 537 mm
• Height: 63 mm
• Depth: 70 mm
• Weight: 2,91 kg

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint is included with the product.
