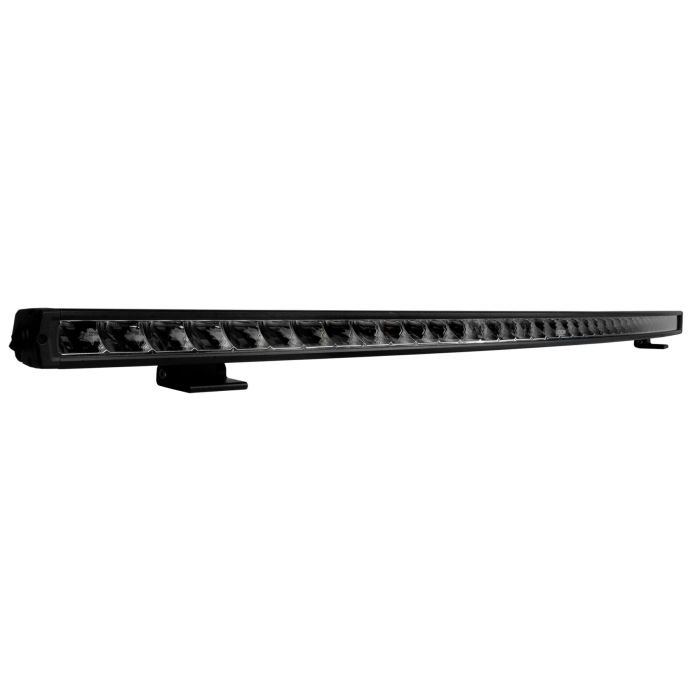

LEDSON Nova C 50" LED bar 266W (Curved, Driving Beam)

€339.29 €271.43
€339.29 €271.43
Retailer price €339.29 Retailer price €271.43
In stock
SKU
33497362

 460m (1 lux) with 50m width (10 lux)
 Nova C 50” with a discrete, slim design
 E-marked R112, 18800 actual lumen

Nova C 50" LED bar (Curved, Driving Beam)

Curved design (C = Curved) with Driving Beam (Drive)

A curved bar often looks more neatly mounted on the vehicle as many cars have a slightly curved front that a curved bar matches nicely.

The Driving Beam "mimics" the vehicle's regular light pattern. You will thus get a similar light scatter to your existing vehicle's dipped- & high beam but amplified.



What more is needed?

  • DTP/ATP-relay: We strongly recommend using our DTP/ATP relay (part no 7800301) with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DTP/ATP relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother with the help of a license plate holder or pipe bracket. See our various accessories for mounting options.



Features:

  • Curved design that matches cars with curved front
  • Driving Beam light pattern (wide and oblong
  • E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
  • ECE R10(EMC secured)
  • 22200 lumen (raw), 18800 lumen (actual)
  • Color temperature 6000K (cold white)
  • Range 460m (1 lux) and 50m width (10 lux)
  • Double mounting options



Technical data:

  • 252W (36 x 7 W LED)
  • IP69K: withstands hot water under pressure
  • Aluminum casing and polykarbonate lens
  • DTP/ATP connector (supplied)



Supplied:

  • Nova C 50" LED bara
  • Side mounted brackets
  • Slideable brackets
  • Butls and screws
  • DT connector
  • Installation manual



Measure & weight:

  • Width: 1274 mm
  • Height: 40 mm
  • Depth: 58 mm

NOTE: The DTP/ATP connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DTP/ATP connector (male) with joint included with the product.

Technical information
Number of contacts 1 x ATP-connector with 2-pole
Tillverkare Ledson
Power usage 12V/24V 9,4A / 8,2A
Height 40 mm
Width 1274 mm
Depth 58 mm
Light flux 22200 (teoretiska), 18800 (faktiska)
Cable length 520mm
Warranty 36 Months
Unit st
