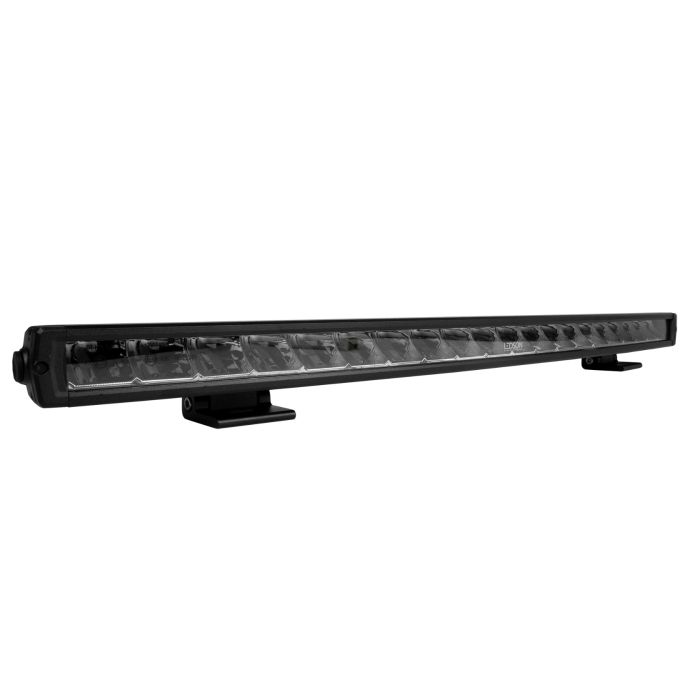

Nova C 30" LED bar 140W (Curved, Driving Beam)

€261.69 €209.35
€261.69 €209.35
Retailer price €261.69 Retailer price €209.35
In stock
SKU
33497202
Rating:
100 % of 100

 442m (1 lux) with 30m width (10 lux)
 Nova C 30” with a discrete, slim design
 E-marked R112, 10500 actual lumen

Nova C 30" LED bar (Curved, Driving Beam)

Curved design (C = Curved) with Driving Beam light pattern (Drive)

A curved bar often looks more neatly mounted on the vehicle as many cars have a slightly curved front that a curved bar matches nicely.

The Driving Beam "mimics" the vehicle's regular light pattern. You will thus get a similar light scatter to your existing vehicle's dipped- & high beam but amplified.



What more is needed?

  • Ledson Connect: We strongly recommend using our Ledson Connect with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between the bar and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
    Detailed installation instructions are included with the DT relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother with the help of a license plate holder or pipe bracket. See our various accessories for mounting options.



Features:

  • Curved design that matches a cars curved front
  • Driving Beam light pattern
  • E-marked ECE R112 (ref. 45) - Read more about UNECE regulations here
  • ECE R10(EMC secured)
  • 12500 lumen (raw), 10500 lumen (actual)
  • Color temperature 6000K (cold white)
  • Range 442m (1 lux)
  • Double mounting options



Technical data:

  • 140W (20 x 7 W LED)
  • IP69K: withstands hot water under pressure
  • Aluminum casing and polykarbonate lens
  • DT connector (supplied)



Supplied:

  • Nova C 30" LED bar
  • Side mounted brackets
  • Slideable brackets
  • Butls and screws
  • DT connector
  • Installation manual



Measure & weight:

  • Width: 728 mm
  • Height: 40 mm
  • Depth: 58 mm
Technical information
Manufacturer Ledson
Color 6000K
Warranty 36 Månader
Width 728 mm
Unit st
Number of contacts 1 x DT-connector
Light flux 12500 teoretiska, 10500 faktiska lumen
Cable length 520mm
Depth 58 mm
Height 40 mm
