LED bar package Phoenix Iveco Daily

€387.89 €310.31
€387.89 €310.31
Retailer price €387.89 Retailer price €310.31
In stock
SKU
1360221

 20” bar with built-in strobelight that is R65 approved
 Selectable orange or xenon white position light
Fits Iveco Daily (2019-2022*)

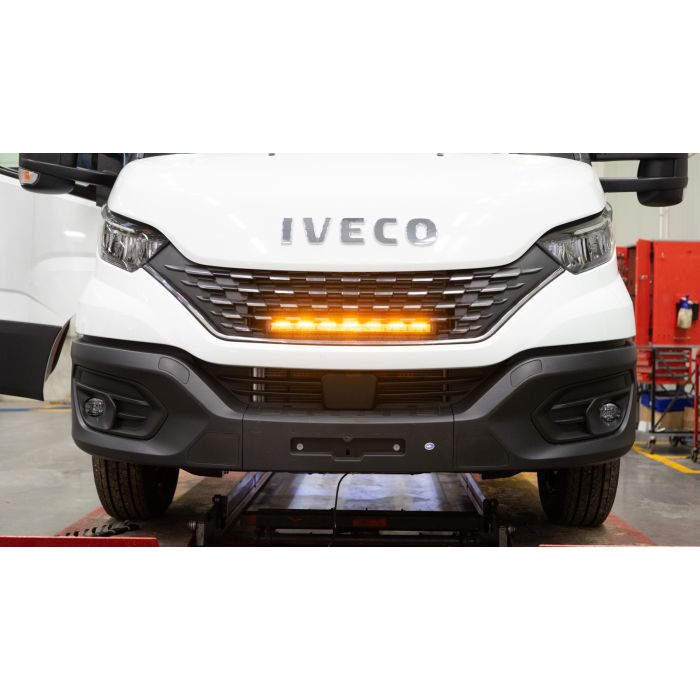

Phoenix LED bar package for Iveco Daily (*2019-2022, before facelift with a new grille).

The following is included in the package:



Phoenix+ 20" (522 mm)

Auxiliary light and warning light in one unit with this multifunctional Ledson bar! Now you no longer have to think about mounting several extra lights and a strobe / warning light, you save space and get a simplified installation.

The bar is available in three different sizes (20", 32" and 40") and therefore fits everything from transport vehicles to trucks and excavators - to meet your needs. All lengths are E-approved as auxiliary lights according to ECE R112 and have approved strobelight (ECE R65). They are also equipped with xenon white or yellow / orange position lights, which is optional to connect.

You get awesome strength in the high beam and a safer job on the road!





Characteristics:

  • Combo Beam light image (wide and oblong)
  • E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
  • ECE R65 / R7 / R10 (EMC-rated)
  • Range: 459 m (1 lux)
  • Lumen: 8820 lm (theoretical), 3586 lm (actual)
  • Color temperature 5700K (cold white)
  • Strobelight: Orange (ECE R65)
  • Position light: Xenon white alt. yellow/orange

Technical data:

  • 105 W (21 x OSRAM CSHP LED)
  • IP69K: withstands hot water under pressure
  • Aluminum housing and unbreakable polycarbonate lens
  • 4-pin DT connector (included)
  • Voltage: 10-30V



Dimensions & weight (excl. Brackets):

  • Width: 522 mm
  • Height: 40 mm
  • Depth: 54 mm (excl. Bracket)
  • Weight: 1300 grams



Cable colors:

  • Green: Flash function
  • Gray: White position light
  • Yellow: Orange position light

The 2-pole DT-contact has +/- and fits bolt on against our relays

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.

Technical information
Manufacturer Ledson
Warranty 36 Månader
Width 522 mm
Unit pkt
Light flux 8820 lumen (faktiska 3586)
Cable length 1 meter
Depth 54 mm (exkl. fäste)
Height 40 mm
