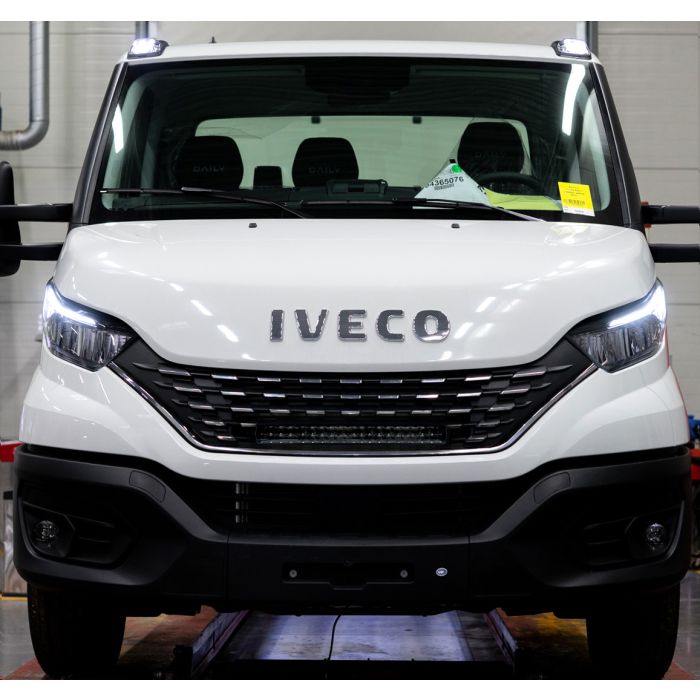

LED bar package Alfa for Iveco Daily

Ledson Alfa LED bar package for Iveco Daily (2019 and newer), with specially made mounting kit for a perfect fit on your vehicle!

The following is included:

• 1 x 20" Alfa LED bar (part 33495365)
• 1 x specially adapted assembly kit for Iveco Daily
• 1 x Ledson Connect (part 7801002)
• Instructions (see PDF here)

Ledson Alfa 20" LED bar (E-marked)

Customer Review: "BUY! Great bar. Almost daylight when driving at night, prevented a few wildlife accidents in my case. 5/5"

Combined beam pattern (combo)

This bar has a combo light pattern, which means that some diodes are aimed closer to the vehicle, spreading the light over a wide area, while the other LEDs are focused far away, giving far-reaching light. The best of two worlds!

Specifications:

• Combo Beam light pattern
• E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
• ECE R10 (EMC-secured)
• Range: 472 m (1 lux)
• Lumen: 16200 lm (theoretical), 13700 lm (actual)
• Color temperature 6000K (cool white)
• Dual mounting options

Technical data:

• 140 W (36 x 5 W LP LED)
• IP69K: withstands hot water under pressure
• Aluminum housing and polycarbonate lens
• DT connector (supplied)
• Voltage: 9-36V

Included:

• Alfa 20" LED bar
• Side-mounted legs
• Sliding brackets (standing / hanging)
• Bolts and screws to secure the bar to a suitable surface
• DT connector
• Installation instructions

Dimensions & weight (excl. brackets):

• Width: 522 mm
• Height: 58 mm
• Depth: 53 mm

NOTE#2: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
