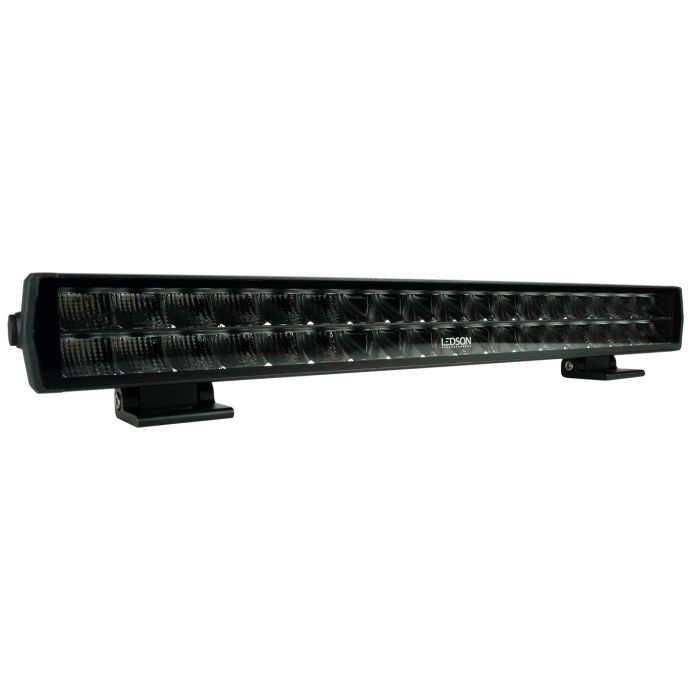

Alfa LED bar 20” 180W (E-marked, Combo)

€271.39 €217.11
€271.39 €217.11
Retailer price €271.39 Retailer price €217.11
In stock
SKU
33495365
Rating:
100 % of 100

 Alfa 20" E-marked R112 & R10
 Modern double-row design
 13700 actual lumens, 472 m (1 lux)

Ledson Alfa 20" LED bar



Combined beam pattern (combo)

This bar has a combo light pattern, which means that some diodes are aimed closer to the vehicle, spreading the light over a wide area, while the other LEDs are focused far away, giving far-reaching light. The best of two worlds!



What more is needed?

  • Ledson Connect: We strongly recommend using our Ledson Connect with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between the bar and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
    Detailed installation instructions are included with the DT relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother with the help of a license plate holder or pipe bracket. Custom made holder for this LED bar is available here!



Specifications:

  • Combo Beam light pattern
  • E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
  • ECE R10 (EMC-secured)
  • Range: 472 m (1 lux)
  • Lumen: 16200 lm (theoretical), 13700 lm (actual)
  • Color temperature 6000K (cool white)
  • Dual mounting options



Technical data:

  • 140 W (36 x 5 W LP LED)
  • IP69K: withstands hot water under pressure
  • Aluminum housing and polycarbonate lens
  • DT connector (supplied)
  • Voltage: 9-36V



Included:

  • Alfa 20" LED bar
  • Side-mounted legs
  • Sliding brackets (standing / hanging)
  • Bolts and screws to secure the bar to a suitable surface
  • DT connector
  • Installation instructions



Dimensions & weight (excl. brackets):

  • Width: 522 mm
  • Height: 58 mm
  • Depth: 53 mm

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.

Technical information
Manufacturer Ledson
Color 6000K
Warranty 36 Månader
Width 522
Unit st
Number of contacts 1 x DT-connector
Light flux 16200 lumen (faktiska 13700)
Cable length 650 mm
Depth 53
Height 58
