Complete Alfa LED bar kit (12V)

Alfa LED bar

Customer review: "BUY! Awesome bar. Almost daylight when driving at night, prevented some wildlife accidents in my case. 5/5"

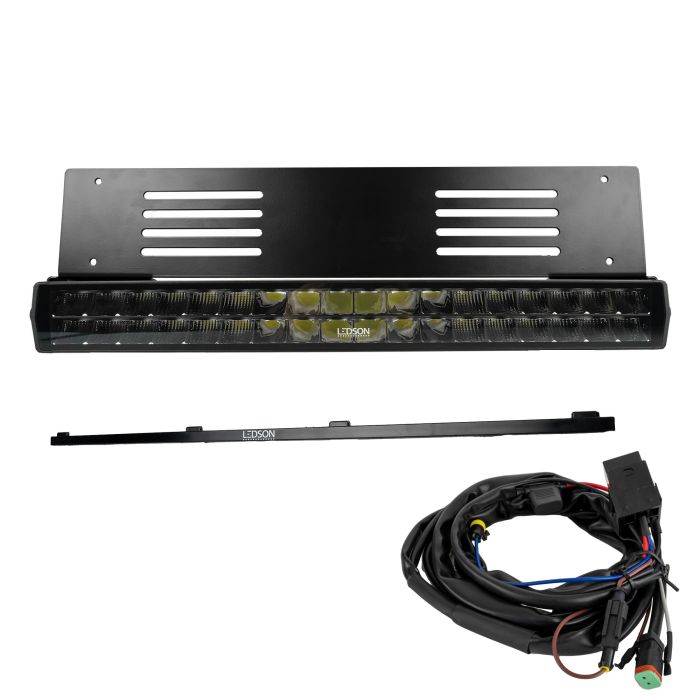

The following is included in the package:

• 1 x 20" Alfa LED bar (artno 33495365)
• 1 x holder (artno 3346056)
• 1 x Ledson Connect (artno 7801002)
• 1 x locking strip (artno 960202)

Combined beam pattern (combo)

This bar has a combo light pattern, which means that some diodes are aimed closer to the vehicle, spreading the light over a wide area, while the other LEDs are focused far away, giving far-reaching light. The best of two worlds

Specifications:

• Combo Beam light pattern
• E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
• ECE R10 (EMC-secured)
• Range: 472 m (1 lux)
• Lumen: 16200 lm (theoretical), 13700 lm (actual)
• Color temperature 6000K (kallvit)
• Dual mounting options

Technical data:

• 180 W (36 x 5 W LP LED)
• IP69K: withstands hot water under pressure
• Aluminum housing and polycarbonate lens
• DT connector (supplied)
• Voltage: 9-36V

Included with the LED bar:

• Alfa 20" LED bar
• Side-mounted legs
• Sliding brackets (standing / hanging)
• Bolts and screws to secure the bar to a suitable surface
• DT connector
• Installation instructions

Dimensions & weight (excl. brackets):

• Width: 522 mm
• Height: 58 mm
• Depth: 53 mm

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
