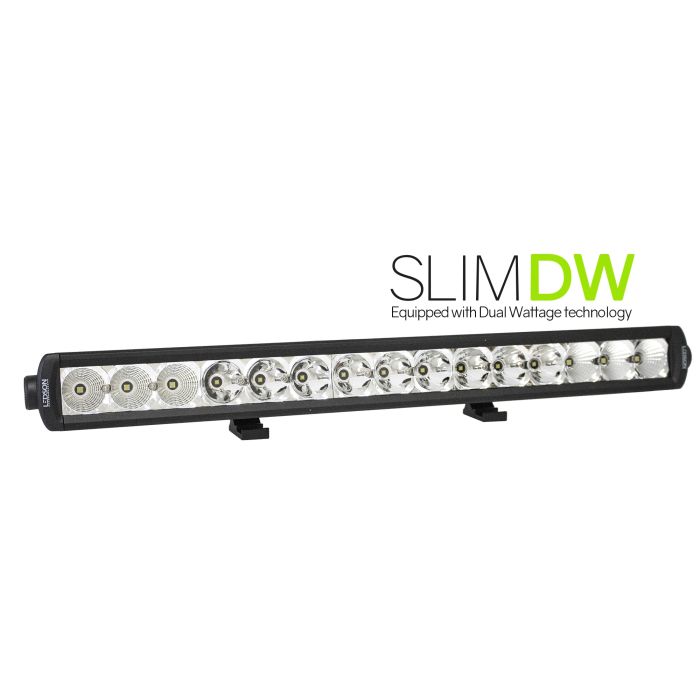

LEDSON SLIM Dual Wattage LED bar 20,5" (Combo)

SLIM LED bar with Dual Wattage technology!

This versatile bar is a significant upgrade of the regular SLIM bara and is exclusive in our range in the way that it is equipped with Dual Wattage. Often, you have to compromise between the length and width of the light and make it the crucial point for the choice of LED bar where you win one advantage but lose the other. You'll get both of them now.

Dual Wattage technically means that we have equipped SLIM DW with both 3W and 5W diodes, in one and the same bar. This unique combination gives you the optimum width as well as the length of the light. On top of that, the bar is only 52 mm high and the flexibility of mounting it is suddenly multiplied! You get a really strong LED bar with a flexible light that can be hidden on the vehicle if you wish to do so!

What more is needed?

• DT-relay: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.
• Mounting on the vehicle:  Custom-made holder intended for this bar is available here: "Holder for LEDSON SLIM DW 20,5"

Characteristics:

• Dual Wattage technology with two different types of LEDs: OSRAM 3W and 5W
• Allows optimum width + length of light without compromises
• Combined beam pattern (wide and oblong)
• 7065 lumen (theoretical), 5399 lumen (actual)
• Color temperature 5000K (neutral white)
• Range 1010 m (0.25 lux), 505 m (1 lux)
• Dual mounting options

 Technical data:

• 57 W (OSRAM 3W x 9 + OSRAM 5W x 6)
• IP67 (water / dust-tight)t)
• Aluminum casing with polycarbonate lens
• 5,87 A at 12 V and 2,92 A at 24 V
• Pressure equalization membrane
• DT connector (supplied)

Measurements:

• Width: 524 mm
• Height: 52 mm
• Depth: 49 mm (exkl brackets)
• Weight: 1,32 kg

NOTE: The DT connector must not be cut because it increases the risk of moisture damage and the warranty will cease to apply. DT connector (male) is included with the product.
