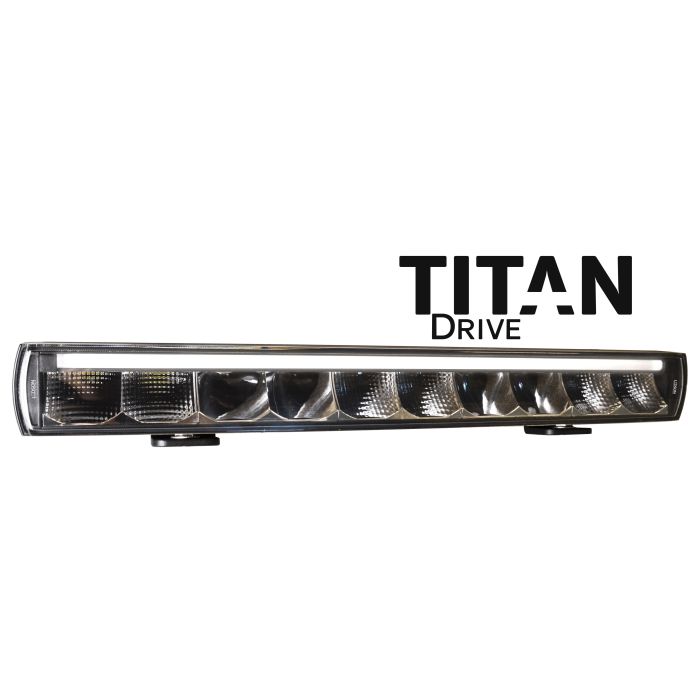

LEDSON Titan Drive LED bar 20,5" 100W (E marked, Driving Beam, DRL)

€0.00 €0.00
€0.00 €0.00
€0.00 €0.00

Save €0

Save €0

In stock
SKU
33491010
Rating:
100 % of 100

 Titan Drive has a beautiful DRL with a distinctive shine
 Driving Beam that boosts the car's regular light
 E marked (E9, ref. 45), 442 m (1 lux), 8075 effective lumen

LEDSON TITAN DRIVE

Titan Drive is for you who want a solid and stylish LED bar that is E-marked and optimally enhances the car's low/high beam thanks to its Driving beam light. As a big plus, it is equipped with a position light / DRL that delivers a soft but distinctive shine.

In short, it will make you look good in the day and see good in the evening!

Driving Beam

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlights and light image.

Titan comes with 3 (!) mounting options:

  • Side-mounted legs that can rotate
  • Standing sliding brackets, rear mounted that can be adjusted along the entire bar for a truly flexible mounting
  • Hanging sliding brackets, rear mounted that can be adjusted along the entire bar for a truly flexible mounting

What more is needed?

  • DT-relay: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and more stylish using a number plate holder. We recommend part 920200 for a flexible mounting.



Features:

  • With selectable position light (soft light)
  • E-mark (E9, ref. 45), ECE R112/R7/R10
  • ”Driving beam” light pattern (wide and elongated)
  • 9500 lumen (raw), 8075 lumen (effective)
  • Color temperature 6500K (cool white)
  • Range 885 m (0,25 lux), 442 m (1 lux)
  • 3 x brackets: standing slideable, hanging slideable, side-mounted



Technical  data:

  • 100 W (10 x 10 W Cree LED)
  • IP68 (water / dust-tight)
  • Aluminum Casing and Polycarbonate lens
  • Side-Reflecting Optic System
  • Electronic Thermal Management
  • 6,5 A at 12 V and 3,25 A at 24 V
  • Pressure relief membrane



Supplied:

  • Titan Drive LED bar
  • Side-mounted legs
  • Standing slideable & hanging slideable brackets
  • Bolts and screws to secure the bar to the appropriate surface
  • DT connector (3 pole)
  • Installation instructions



Measurement & weight:

  • Width: 516 mm
  • Height: 58 mm
  • Depth: 81 mm
  • Weight: 1,63 kg
More Information
Choice Driving beam
Number of contacts 1 x DT-kontakt
Inches 20,5"
Beam pattern Driving beam
Start time Omedelbar
Manufacturer Ledson
Warranty 24 Månader
Color Xenon white
Polarity dependent No
Elektronisk värmekontroll (ETM) No
Pressure equalization membrane No
Light flux 9500 lumen (teoretiska), 8075 lumen (faktiska)
Length (mm) 516 mm
Depth 81 mm
Power usage 12V/24V 6,5 A vid 12 V och 3,25 A vid 24 V
Height 58 mm
Unit st
