REX+ LEDSON LED bar 20,5" 120W

€261.69 €209.35
€261.69 €209.35
Retailer price €261.69 Retailer price €209.35
In stock
SKU
33491189
Rating:
100 % of 100

✓ REX+ is 52 cm wide with selectable position light
✓ Maximized brightness and optimal light distribution
✓ 9600 actual lumens and a range of 522m at 1 lux

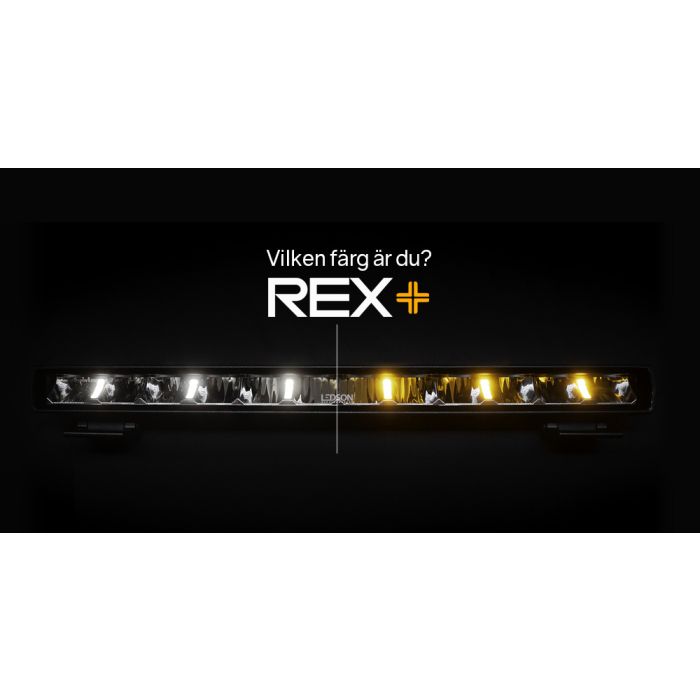

Ledson REX+ is a LED light bar we can really recommend to you those want a LOT of light on the road! The LED bar gives you a really strong light that extends far in front of you with a width that allows you to get a good view even to the sides of the road, where it is needed. With REX+, it is safer to drive on the roads in the dark.

REX+ is an exceptionally strong bar with a license plate width, in fact the absolute strongest light bar from Ledson that is available in this size. The bar is 52 cm wide, which is basically the same width as the license plate and it therefore fits nicely in the front of the car. This makes REX+ the obvious choice if you want as much light as possible without having to go up in size, as this width is absolutely perfect for the car.



Driving Beam light pattern

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.



What more is needed? (Complete package can be found here)

  • Ledson Connect: We strongly recommend using our Ledson Connect with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between the bar and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
    Detailed installation instructions are included with the DT relay.
  • Mounting on the vehicle: See our Special holder for REX+.



Specifications:

  • LED bar with width of 52 cm (approximately 20,5")
  • With position light, xenon white or yellow/orange (connect the color you want)
  • Driving Beam light pattern
  • Range: 1044 m (0,25 lux), 522 m (1 lux)
  • EMC secured
  • 12000 lumen (raw), 9600 lumen (effective)
  • Cold white light (6000K)
  • Pressure equalization membrane
  • Aluminum heat sink
  • Aluminum housing
  • Polycarbonate lens
  • 24 month warranty



Technical data:

  • 120W (12 x 10W LP LED)
  • IP69K (water/dust proof)
  • DT connector 4 pin supplied
  • Voltage 9-36 V
  • Power consumption: 7,6A at 12V and 4A at24V
  • E-marked: No



Dimensions & weight:

  • Width: 520 mm
  • Height: 41 mm
  • Depth: 53 mm (exkl. fäste)
  • Weight: 1,2 kg



Supplied:

  • Ledson Rex+ LED bar
  • Side mounted legs and slideable brackets
  • DT connector (4 pole)
  • Installation instructions
Technical information
Manufacturer Ledson
Color Xenon white + Yellow-orange
Warranty 24 MÃ¥nader
Width 520mm
Unit st
Light flux 12 000 lumen (faktiska 9600)
Depth 53mm (exkl. fäste)
Height 41mm
