Complete REX+ LED bar kit (12V)

Ledson REX+ is a complete LED light bar package we can really recommend to you if you want LOTS of light on the road! The LED bar gives you a really strong light that extends far in front of you with a width that allows you to get a good view even to the sides of the road, where it is needed. With REX+, it is safer to drive on the roads in the dark.

REX+ is an exceptionally strong bar with a license plate width. The bar is 52 cm wide, which is basically the same width as the license plate and it therefore fits nicely in the front of the car. This makes REX+ the obvious choice if you want as much light as possible without having to go up in size, as this width is absolutely perfect for the car.

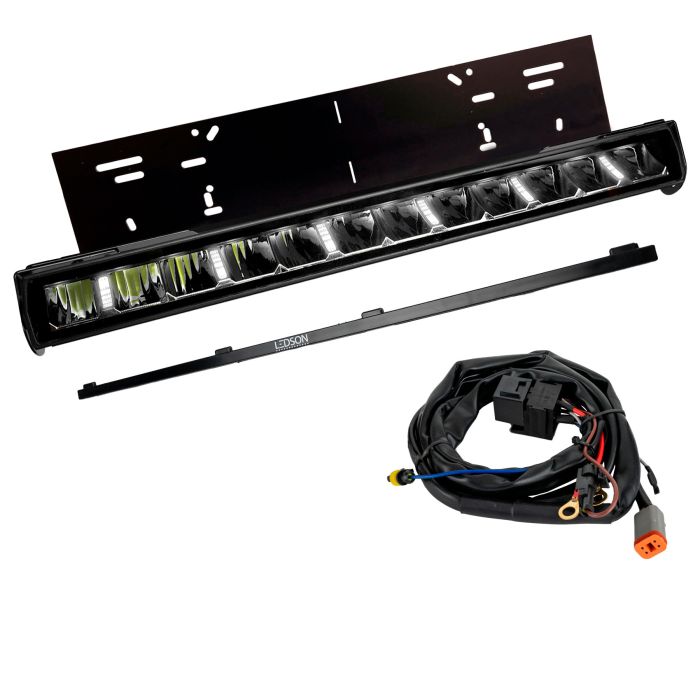

The following is included in the package:

• 1 x 20,5" REX+ LED bar (part 33491189)
• 1 x holder (part 3346059)
• 1 x Ledson Connect (part 7801004)
• 1 x locking strip (part 960202)

Driving Beam light pattern

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.

Specifications:

• LED bar with width of 52 cm (approximately 20,5")
• with position light, xenon white or yellow/orange (connect the color you want)
• Driving Beam light pattern
• Range: 1044 m (0,25 lux), 522 m (1 lux)
• EMC secured
• 12000 lumen (raw), 9600 lumen (effective)
• Cold white light (6000K)
• Pressure equalization membrane
• Aluminum heat sink
• Aluminum housing
• Polycarbonate lens
• 24 month warranty

Technical data:

• 120W (12 x 10W LP LED)
• IP69K (water/dust proof)
• DT connector 4 pin supplied
• Voltage 9-36 V (this package is for 12V)
• Power consumption: 7,6A at 12V and 4A at24V
• E-marked: No

Dimensions & weight of the LED bar:

• Width: 520 mm
• Height: 41 mm
• Depth: 53 mm
• Weight: 1,2 kg

Supplied:

• Ledson REX+ LED bar
• Side mounted legs and slideable brackets
• DT connector (4 pole)
• DT relay with button
• Custom made holder
• Locking strip for holder
• Installation instructions

Note: Do not cut the DT contact, as it increases the risk of moisture damage, and warranty coverage will be voided. The DT contact (male) with splice is included with the product.
