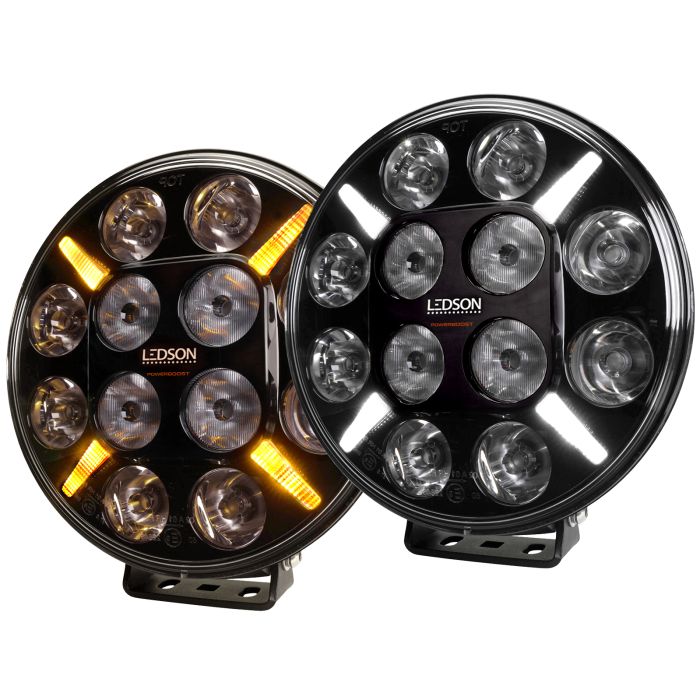

Pollux9+ Gen3 LED Auxiliary Light 120W (Driving / Spot Beam)

LEDSON Pollux9+ Generation 3: More powerful and smarter than ever

With the Pollux9+ Generation 3, you enhance your driving experience with the latest technology from Ledson in an auxiliary light filled with features. With an impressive 120W power output and the groundbreaking feature of pulse-controlled Powerboost, this third generation of Pollux9+ offers increased flexibility and improved brightness when needed most.

Pollux9+ Generation 3 provides outstanding brightness and range to ensure superior visibility and safety in all driving conditions. With its robust design, the Pollux9+ Generation 3 is engineered to withstand tough conditions and is ready to deliver superior performance for years to come.

Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This

Pollux9+ Gen3 comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash in just a few easy steps, as shown here. Note: Your auxiliary light is delivered in E-approved mode. Please follow the instructions to activate Powerboost mode.

Switch to Powerboost mode with "10+10+5"

This is done most easily with the 'light switch' when the light switch is in off or parking light mode.

1. Turn on the auxiliary light for about 10 seconds (between 7-13 seconds)
2. Flash the auxiliary light rapidly 10 times (within 10 seconds)
3. On the eleventh flash, hold the light on and after about 5 seconds the Powerboost function will automatically switch on or off.

TIR reflectors

TIR stands for Total Internal Reflection and means that all light is effectively reflected and directed before it is emitted from the reflector. Spill light (the light that is not directed but disappears "unfocused" from the lighting without actually serving any purpose) is minimized. A traditional reflector directs and focuses most of the light but far from all; Pollux 9+ has these TIR reflectors for maximum light.

Choose your light pattern: Driving or Spot Beam

Choose between Driving Beam for a balanced light pattern that complements your vehicle's headlights, or Spot Beam for a powerful and focused beam of light that effectively illuminates the road ahead of you.

Mounting on the Vehicle

• Can be mounted easily and neatly using a license plate holder or tube mount. Check out our various accessories for mounting options.
• Ledson Connect 12V or DT relay kit 24V: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
  Detailed installation instructions are included with the DT relay.

TIPS: Also, check out our quick connector for relay kits with pre-made connectors, no damage to the car's original wiring (no need for wire tapping). Quick and easy installation!

Features:

• E-marked (ref. 37.5 for Driving Beam, ref. 50 for Spot Beam), ECE R112 / R10 / R7 (white position light) - Learn more about E-marks here
• Equipped with pulse-controlled Powerboost
• EMC secured (does not interfere with radio signals)
• With position light (4 pcs LED) yellow-orange or xenon white (connect the color you prefer)
• "Driving beam" light pattern (33491236) or "Spot Beam" light pattern (33491237)
• Driving Beam Range: 407 m (1 lux), Powerboost: 659 m (1 lux)
• Spot Beam Range: 493 m (1 lux), Powerboost: 805 m (1 lux)
• 4200 lumens (theoretical), 3500 lumens (actual)
• Powerboost 13000 lumens (theoretical), 10500 lumens (actual)
• Color temperature 5000K (Neutral White)
• TIR optical system (Total Inner Reflection)
• Pressure equalization membrane
• 36-month warranty

Technical Data:

• 120W (12 x 10W LED)
• Nominal power 92.4 W
• IP68 & IP69K (water/dustproof)
• DT connector (4-pin) included
• Electronic heat management
• Voltage 9-36 V
• Load 3.2 A @ 12 V and 1.6 A @ 24 V
• Load Powerboost 9.8 A @ 12 V and 4.6 A @ 24 V

Dimensions & Weight:

• Width: 218 mm
• Height: 234.5 mm (including bracket)
• Depth: 68.5 mm
• Weight: 1.9 kg
• Cable length: 650 mm

Included:

• Ledson Pollux9+ Generation 3 LED extra light
• Bolts and screws to attach the extra light with either one or two mounting points
• DT connector (4-pin) - complement with Ledson Connect
• Installation instructions

Cable Installation Instructions (detailed installation instructions are included with the product):

• Red: Extra light (+)
• Black: Extra light / Position lights (- ground)
• White: Position lights (+) white light
• Yellow: Position lights (+) yellow-orange light

NOTE: The DT connector must not be cut, as it increases the risk of moisture damage and voids the warranty.
