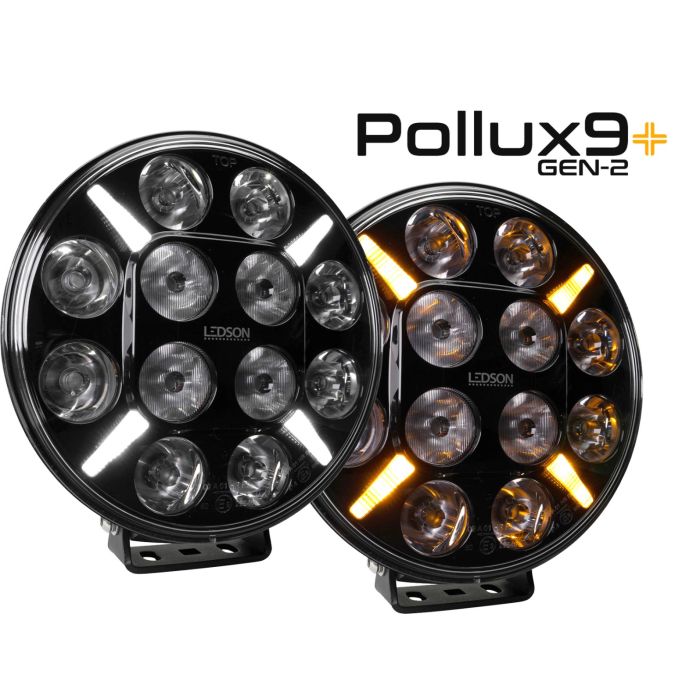

Pollux9+ Gen2 LED 120W (Driving Beam)
✓ Yellow-orange or xenon white position light
✓ Driving Beam
✓ TIR reflectors for maximum light
Pollux9+ with yellow-orange position lights - Now in Generation 2!
LEDSON Pollux 9+ comes with selectable yellow-orange or xenon white position lights. Additionally, Pollux9+ is available in two different versions; with Driving Beam (part number 33491232) and Spot Beam (part number 33491233) light patterns.
Compared to the first generation of Pollux9+, Pollux9+ Gen2 Driving Beam provides 55 meters more light at 1 lux, while Gen2 Spot Beam offers a 29-meter longer beam at 1 lux.
Blog post where we compare light patterns between different LED bars and extra lights
Stone Chip Protection and Snow Filter
Our Pollux9+ lights are already equipped with a durable lens, but if you truly care about giving your extra lights a long lifespan, free from stone chips and scratches, we recommend our stone chip protection. An affordable and simple way to add an extra layer of protection to your lights!
You can find both stone chip protection and snow filter here
TIR Reflectors
TIR stands for Total Inner Reflection, which means that all light is efficiently reflected and directed before being emitted from the reflector. Stray light (light that is not directed and disappears "unfocused" from the lighting without serving any real purpose) is minimized. A traditional reflector directs and focuses most of the light but not all, whereas Pollux 9+ features these TIR reflectors for maximum light output.
In summary: You get more efficient light on the road and make the most out of each LED in the extra light with TIR reflectors!
Driving Beam Light Pattern
Driving Beam reflectors are all computer-designed and manufactured to provide a similar light pattern to the combo pattern but more even and within legal limits. It mimics and enhances the car's existing headlights and light pattern.
Spot Light Pattern
A spot light pattern provides a focused beam straight ahead to illuminate the road in front of the car to the maximum extent possible. This is ideal for driving on highways or roads with good visibility far ahead. Also known as high beams.
Mounting on the Vehicle
- Can be mounted easily and neatly using a license plate holder or tube mount. Check out our various accessories for mounting options.
- Ledson Connect 12V or DT relay kit 24V: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
Detailed installation instructions are included with the DT relay.
TIPS: Also, check out our quick connector for relay kits with pre-made connectors, no damage to the car's original wiring (no need for wire tapping). Quick and easy installation!
Features:
- E-marked (E8, ref. 37.5 for Driving Beam, ref. 50 for Spot Beam), ECE R112 / R10 / R7 (white position lights) - Learn more about E-marks here
- EMC-secured (does not interfere with the radio)
- With position lights (4 LEDs) in yellow-orange or xenon white (connect the color you prefer)
- "Driving beam" light pattern (33491232) or "Spot Beam" light pattern (33491233) - choose the version
- Driving Beam Range: 960 meters (0.25 lux), 480 meters (1 lux)
- Spot Beam Range: 1148 meters (0.25 lux), 574 meters (1 lux)
- 12000 lumens (theoretical), 9600 lumens (actual)
- Cool white light (6500 K)
- TIR optical system (Total Inner Reflection)
- Pressure equalization membrane
- 36 months warranty
Technical data:
- 120 W (12 x 10 W Cree XM-L2 LED)
- Nominal power 92.4 W
- IP68 (water/dustproof)
- DT adapter from 4-pin to 2-pin with 2 loose cables included
- DT adapter from 4-pin to 2 loose cables included
- Electronic heat management
- Voltage 9-36 V
- Load 7.7 A @ 12 V and 3.6 A @ 24 V
Dimensions & Weight:
- Width: 218 mm
- Height: 234.5 mm (including bracket)
- Depth: 68.5 mm
- Weight: 1.9 kg
- Cable length: 650 mm
Included:
- Ledson Pollux9+ Generation 2 LED extra light
- Bolts and screws to attach the extra light with either one or two mounting points
- DT connector (4-pin) - complement with Ledson Connect
- Installation instructions
Cable Installation Instructions (detailed installation instructions are included with the product):
- Red: Extra light (+)
- Black: Extra light / Position lights (- ground)
- White: Position lights (+) white light
- Yellow: Position lights (+) yellow-orange light
NOTE: The DT connector must not be cut, as it increases the risk of moisture damage and voids the warranty.
Beam pattern | Kombination |
---|---|
Light flux | 12000 lumen (teoretiska), 9600 lumen (faktiska) |
Cable length | 650 mm |
Depth | 68,5 mm |
Diameter (mm) | 9" |
Number of diodes | 12 st 10W Cree XM-L2 LED |
Theoretical output | 120W (nominell effekt 92W) |
Power usage 12V/24V | 7,7 A @ 12 V och 3,6 A @ 24 V |
Power usage 12V/24V | 7,7 A @ 12 V och 3,6 A @ 24 V |
Height | 234,5 mm (inkl fäste) |
Use of power | 92,4 W |
Width | 218 mm |
Range | 850 m (0,25 lux), 425 m (1 lux) |
Unit | st |
Source of light | LED |
Number of diodes | 12 pcs |
E-mark | Ja |
Choice | Driving beam |
Start time | Immediate |
Charging time (warm to full strength) | Omedelbar |
Warranty | 36 Months |
Color | Xenon white |
Voltage | 9-36 V |
Warranty | 24 Months |
Tillverkare | Ledson |
