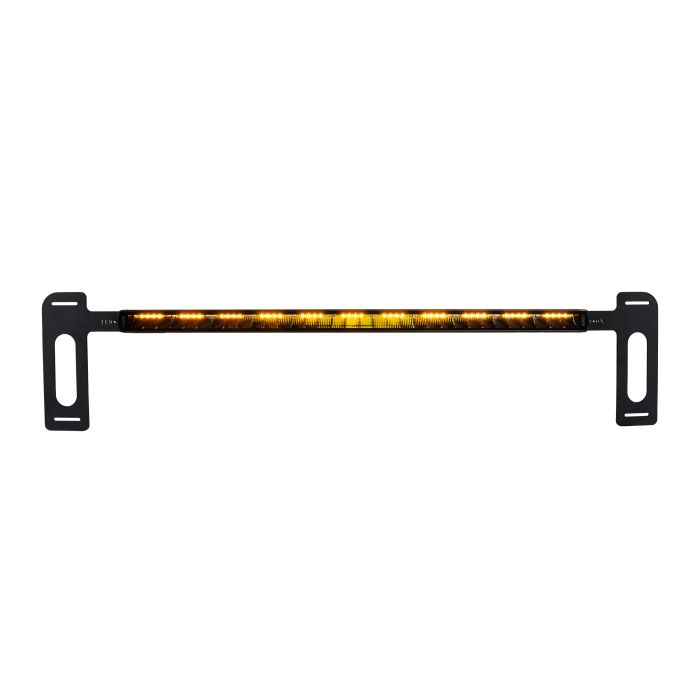

Phoenix 32" LED-bar package for Volvo FH 21+

Ledson Phoenix+ 32" LED bar kit for Volvo FH, from model year 2021+. With our custom-designed and Swedish-made mounting kit, you get a quick and cost-effective installation. You can mount the light bar either discreetly behind the front grille or let the light bar protrude through the grille.

Additionally, the package includes an adapter cable that simplifies connecting the LED light bar's DT connector to the pre-wired truck harness located behind the front panel/grille.

Included in the package:

• 32" Phoenix+ LED bar (part no 33305335-1)
• Installation kit with all necessary components for an easy and quick setup, including installation instructions
• Adapter cable with Volvo connector

Phoenix+ 32" (798 mm)

Auxiliary light and warning light in one unit with this multifunctional Ledson bar! Mount a LED bar with strobelight function and you save both valuable installation time and get a much cleaner look into the bargain!

You get awesome strength in the high beam and a safer job on the road!

Characteristics:

• Driving Beam beam pattern (wide and oblong)
• E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
• ECE R65 / R7 / R10 (EMC-rated)
• Range: 449 m (1 lux)
• Lumen: 13860 lm (theoretical), 5583 lm (actual)
• Color temperature 5700K (cold white)
• Strobelight: Orange (ECE R65)
• Position light: Xenon white

Technical data:

• 165 W (33 x OSRAM CSHP LED)
• IP68/69K: withstands hot water under pressure - Read more about IP rating here
• Aluminum housing and polycarbonate lens
• 2-pin DT connector (included)
• Voltage: 10-30V

Dimensions & weight (excl. Brackets):

• Width: 798 mm
• Height: 40 mm
• Depth: 54 mm (excl. Bracket)
• Weight: 2100 grams

Cable colors:

• Green: Flash function
• Gray: White position light

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
