Phoenix+ 32" LED bar package for Scania Next Gen

€533.49 €426.79
€533.49 €426.79
Retailer price €533.49 Retailer price €426.79
In stock
SKU
1360225

✓ Phoenix+ 32" with mounting details for Scania Next Gen
✓ Orange strobelight that is ECE R65 approved
✓ Selectable xenon white or orange position light

Ledson Phoenix 32" with strobe light & position light LED bar kit for Scania Next Generation, model year 2016 and newer. With our custom designed mounting kit, you get a quick and cost-effective installation as well as an optional mounting position for the LED bar. Mount it either hidden behind the front grille or let the bar protrude through, either at the top or bottom grille.

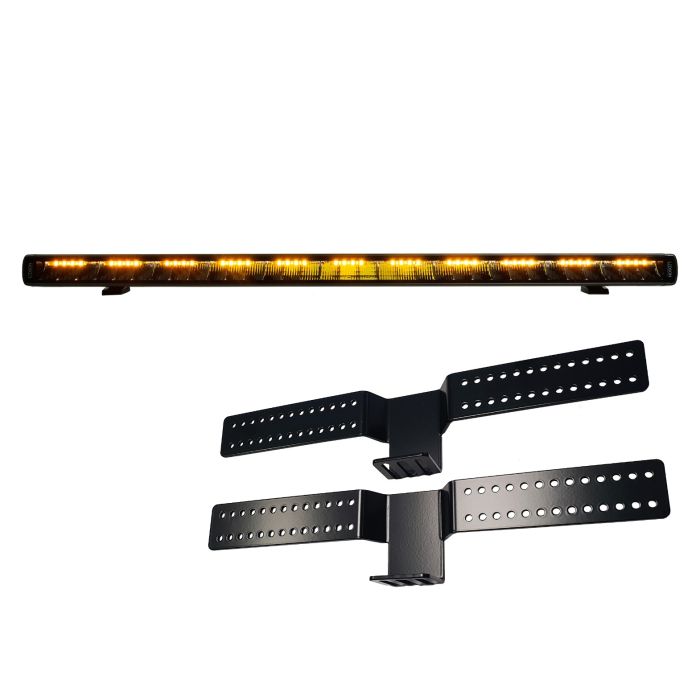

Included in the package:



Phoenix+ 32" (798 mm)

Auxiliary light and warning light in one unit with this multifunctional Ledson bar! With the strobelight function you save both valuable installation time and get a much cleaner look!

Phoenix+ is E-approved as auxiliary light according to ECE R112 and has approved strobelight (ECE R65). It´s also equipped with xenon white or yellow / orange position lights, which is optional to connect.

You get awesome strength in the high beam and a safer job on the road!



Characteristics:

  • Driving Beam beam pattern (wide and oblong)
  • E-marked ECE R112 (ref. 50) - Read more about UNECE regulations here
  • ECE R65 / R7 / R10 (EMC-rated)
  • Range: 449 m (1 lux)
  • Lumen: 13860 lm (theoretical), 5583 lm (actual)
  • Color temperature 5700K (cold white)
  • Strobelight: Orange (ECE R65)
  • Position light: Xenon white alt. yellow/orange

Technical data:

  • 165 W (33 x OSRAM CSHP LED)
  • IP69K: withstands hot water under pressure - Read more about IP rating here
  • Aluminum housing and polycarbonate lens
  • 4-pin DT connector (included)
  • Voltage: 10-30V



Dimensions & weight (excl. Brackets):

  • Width: 798 mm
  • Height: 40 mm
  • Depth: 54 mm (excl. Bracket)
  • Weight: 2100 grams



Cable colors:

  • Green: Flash function
  • Gray: White position light
  • Yellow: Orange position light



NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.

Technical information
Manufacturer Ledson
Warranty 36 Months
Height 40 mm
Width 798 mm
Unit pkt
Depth 54 mm (exkl. fäste)
Cable length 790 mm
Light flux 13860 lm (teoretiska), 5583 lm (faktiska)
