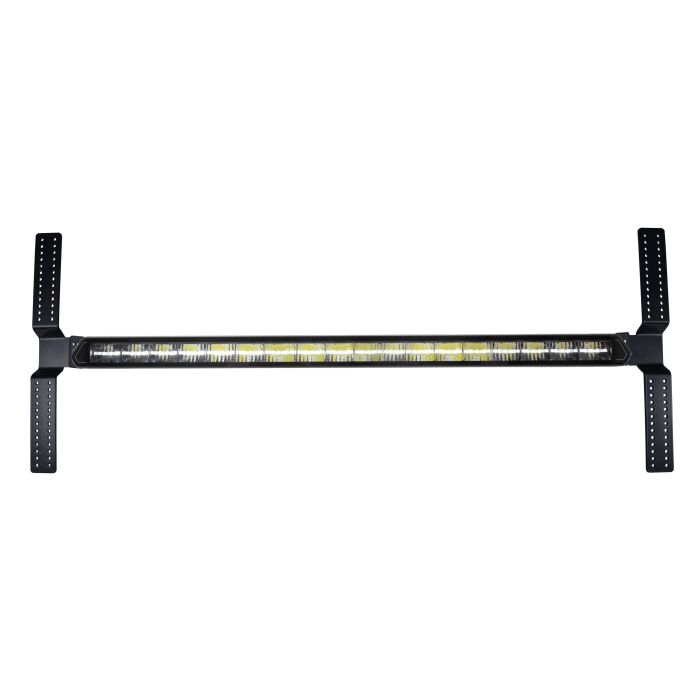

EPIX30+ LED bar package for Scania Next Gen

Ledson EPIX30+ with Powerboost & position light LED bar kit for Scania Next Generation, model year 2016 and newer. With our custom designed mounting kit, you get a quick and cost-effective installation as well as an optional mounting position for the LED bar. Mount it either hidden behind the front grille or let the bar protrude through, either at the top or bottom grille.

Included in the package:

• 30" EPIX30+ LED- bar (part no 334915188)

• Custom made mounting for Scania Next Generation

• Screws, nuts and Installation instructions

Treat yourself to the best. Epix30+ stands out from the crowd with a self-developed sporty design, created with today’s modern vehicle in mind. One world-unique feature is its position lights, fully integrated into the reflector.

The dynamic ignition of the position lights gives the bar an effective start-up. Everything you need and want in a LED bar, you’ll find with Epix+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose to go ”off-road". Self-developed smart mounts ensure easy installation almost anywhere on the vehicle, however you prefer.


Epix+ series is for you who want a futuristic experience

The design of the bar is uniquely developed by Ledson and is in harmony with today's most modern trucks, taking your vehicle to the next level. Its dynamic position light turns on with a powerful movement that neatly guides the light from one side of the bar to the next before fully lighting up. The position light is integrated into the reflector, a completely unique feature that makes you stand out a little extra.


Powerboost: how much light do you want?

As if this wasn’t enough to look forward to, you also have the option to use Powerboost. Simply tighten or loosen the screw in the back of the LED bar to switch between E-approved mode or ”off road” Powerboost mode, for occasions when you need maximum brightness on the road ahead.

Driving Beam light pattern

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the vehicle's existing headlight and light pattern.

Features and technical data:

• Position light with unique dynamic ignition, integrated in the reflector
• Selectable position light in xenon white or yellow/orange
• Driving Beam light pattern (wide and oblong)
• E-marked R112, R7, R10 (EMC rated)
• Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
• 23,200 lumens (theoretical), 16,300 lumens (actual)
• Color temperature 5000K (Neutral White)
• 270 W (18 x 15 W LEDs)
• Voltage: 9-36V
• IP69K (water/dustproof)
• Aluminum housing and polycarbonate lens
• Side reflective optics
• Pressure equalization membrane
• Electronic heat management
• Supplied connectors: 1 x DTP connector 2 pole (LED bar high beam) and 1 x DT connector 2 pole (LED bar position light)

Dimensions & weight of the LED bar (excl mounting):

• Width: 740 mm
• Height: 43 mm
• Depth: 61 mm
• Weight: 2.25 kg

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.
