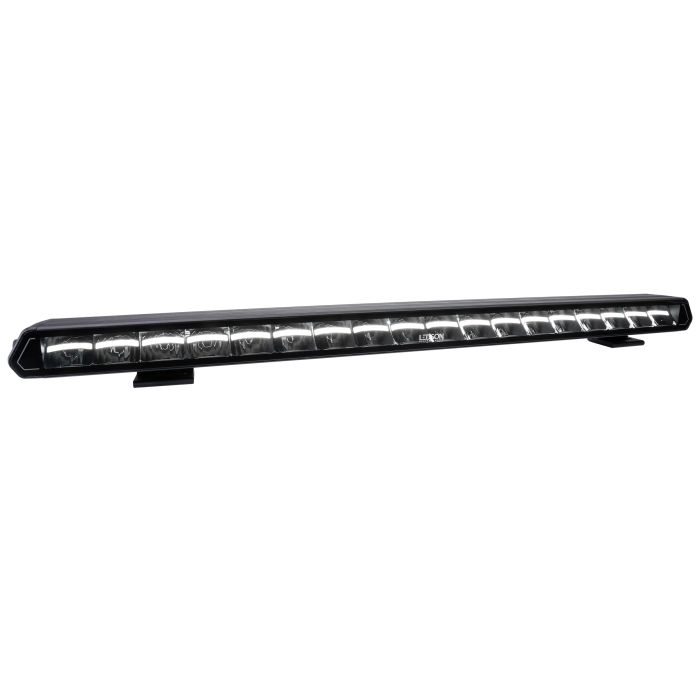

EPIX30+ Prime LED bar 30" 270W Powerboost

Treat yourself to the best. Epix30+ stands out from the crowd with a self-developed sporty design, created with today’s modern cars in mind. One world-unique feature is its position lights, fully integrated into the reflector.

The dynamic ignition of the position lights gives the bar an effective start-up. Everything you need and want in a LED bar, you’ll find with Epix30+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose to go ”off-road". Approved R65 strobe lights ensure your visibility when working on the road and keep you safe in all weather and times of the day. Self-developed smart mounts ensure easy installation almost anywhere on the vehicle, however you prefer.


Epix+ series is for you who want a futuristic experience

The design of the bar is uniquely developed by Ledson and is in harmony with today's most modern cars, taking your vehicle to the next level. Its dynamic position light turns on with a powerful movement that neatly guides the light from one side of the bar to the next before fully lighting up. The position light is integrated into the reflector, a completely unique feature that makes you stand out a little extra.


Powerboost: how much light do you want?

As if this wasn’t enough to look forward to, you also have the option to use Powerboost. Simply tighten or loosen the screw in the back of the LED bar to switch between E-approved mode or ”off road” Powerboost mode, for occasions when you need maximum brightness on the road ahead.

Driving Beam light pattern

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.

What more is needed?

• DTP relay harness: We strongly recommend using our Connect cable harness with 1 x 2-pin DTP (part no. 7801010). Ledson Connect provides a super easy connection while being interconnectable if there is a future desire to easily expand with additional lights or bars

Features and technical data:

• Position light with unique dynamic ignition, integrated in the reflector
• Selectable position light in xenon white or yellow/orange
• Driving Beam light pattern (wide and oblong)
• E-marked R112, R7, R10 (EMC rated)
• Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
• 23,200 lumens (theoretical), 16,300 lumens (actual)
• Color temperature 5000K (Neutral White)
• 270 W (18 x 15 W LEDs)
• Voltage: 9-36V
• IP69K (water/dustproof)
• Aluminum housing and polycarbonate lens
• Side reflective optics
• Pressure equalization membrane
• Electronic heat management
• 1 x DTP connector 2 pole (LED bar high beam) and 1 x DT connector 2 pole (LED bar position light)

Supplied:

• Epix30+ Powerboost 30" LED bar
• Bolts and screws to attach the bar to appropriate surface
• Smart mounting details
• DTP connector and DT connector (2-pin) - You will also need a Connect DTP harness found here
• Installation instructions

Dimensions & weight (excl mounting):

• Width: 740 mm
• Height: 43 mm
• Depth: 61 mm
• Weight: 2.25 kg

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.
