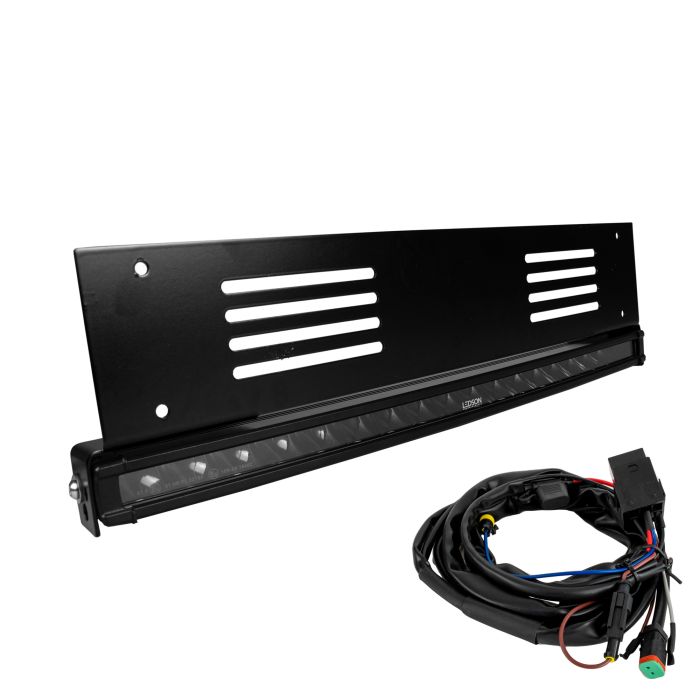

Complete Juno C LED bar kit (12V)

The following is included in the package:

• 1 x 22" Juno C LED bar (part 33501852)
• 1 x custom made holder (part 3346056)
• 1 x Ledson Connect (part 7801002)
• 1 x locking strip (part 960201)

Juno C LED bar with curved design


Juno C is the "sequel" to our extremely popular Juno LED bar. C stands for Curved, which means that the bar has a curved design. This makes it even more attractive on vehicles that have a curved front in addition to having 30 m extra range at 1 lux brightness!

Curved design (C = Curved) with Driving Beam light pattern (Drive)

A curved bar often looks more neatly mounted on the vehicle as many cars have a slightly curved front that a curved bar matches nicely.

The Driving Beam "mimics" the vehicle's regular light pattern. You will thus get a similar light scatter to your existing vehicle's dipped- & high beam but amplified.

Features:

• Curved design that matches cars with curved front
• Driving Beam light pattern (wide and oblong)
• E marked (E9, ref. 45), ECE R112/R10 - Read more about UNECE regulations here
• CISPR25 klass 3 (EMC secured)
• 6669 lumen (raw), 3928 lumen (actual)
• Color temperature 5700K (kallvit)
• Range 720 m (0,25 lux), 450 m (1 lux)
• Double mounting options

Tecnical data:

• 90 W (18 x 5 W OSRAM LED)
• IP69K: withstands hot water under pressure
• Aluminum casing and polykarbonate lens
• 6,22 A at 12 V and 2,90 A at 24 V
• DT connector

Supplied:

• Juno C LED bar
• Side mounted brackets
• Slideable brackets for standing or hanging mount
• Bults and screws
• DT connector
• Installation manual

Measure & weight:

• Width: 527 mm
• Height: 35 mm
• Depth: 72 mm
• Weight: 1,2 kg

NOTE: The DT connector must not be cut as it involves an increased risk of moisture damage and the guarantee then expires. DT connector (male) with joints included with the product.
