Complete Juno LED bar kit (12V)
✓ Complete LED bar kit with Juno, special holder and Ledson Connect!
✓ Super slim with a resting aggressive look!
✓ 4690 actual lumen, 450 m (1 lux)
Juno - Superslim LED bar package!
With just over 3 cm (33 mm) in height, this led light bar is remarkably thin. At a distance it is barely visible but the closer you look, the more visible the bars distinctly aggressive and modern exterior becomes. This is a ledbar for those who want the latest, the thinnest, most unobtrusive, but that still fits nicely on the car and provides that attractive added value.
And of course, with the amount of light that will make your high beams full of shame! 4690 actual lumens emit from 18 OSRAM LEDs.

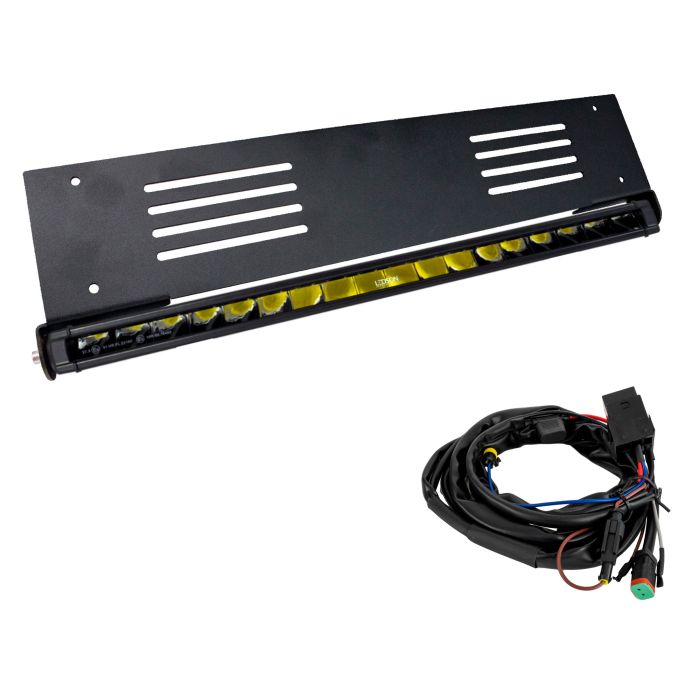

The following is included in the package:
- 1 x 21,5" Juno LED bar (33501859)
- 1 x custom holder (3346057)
- 1 x Ledson Connect (7801002)
- 1 x locking strip for license plate (960202)
Properties for Juno:
- E-mark (E9, ref. 37,5), ECE R112/R10
- ”Driving beam” light pattern (wide and elongated)
- 7560 lumen (raw), 4690 lumen (effective)
- Color temperature 5700K (cool white)
- Range 720 m (0,25 lux), 450 m (1 lux)
- Two mounting options
Technical data Juno:
- 90 W (18 x 5 W OSRAM LED)
- IP68 (water / dust-tight)
- Aluminum casing and polycarbonate lens
- 6,35 A at 12 V and 3,03 A at 24 V
- DT-connector (included)
Measurements Juno:
- Width: 528 mm
- Height: 33 mm (exkl mounting)
- Depth: 68 mm
- Weight: 1,28 kg
OBS: DT-kontakten får inte klippas eftersom det innebär en ökad risk för fuktskador och garantin då slutar att gälla. DT-kontakt (hane) med skarv medföljer produkten.
Tillverkare | Ledson |
---|---|
Power usage 12V/24V | 6,35 A vid 12 V och 3,03 A vid 24 V |
Height | LED-ramp: 33 mm (exkl. fästen) |
Width | LED-ramp: 528 mm (exkl. fästen) |
Depth | LED-ramp: 68 mm (exkl. fästen) |
Light flux | 7560 lumen (teoretiska), 4690 lumen (faktiska) |
Warranty | 36 Months |
Unit | pkt |
