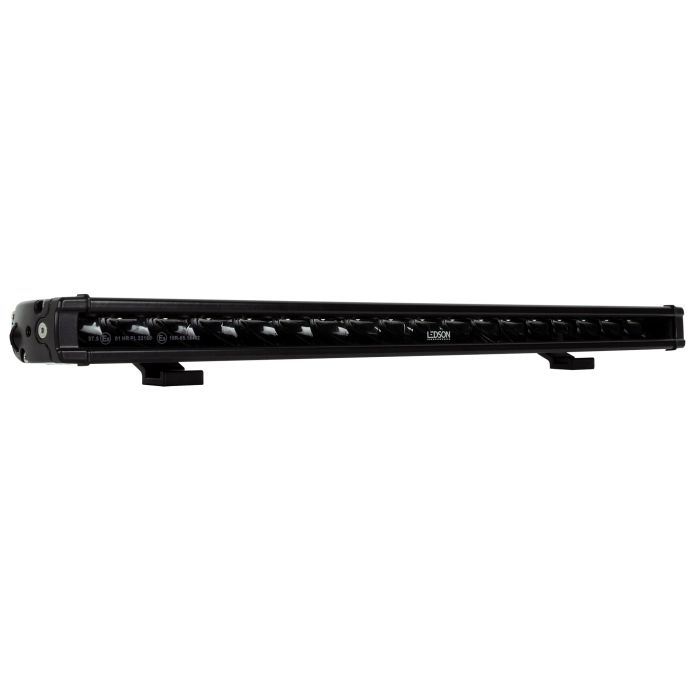

LEDSON Juno LED bar 21,5" (E mark, Driving Beam)

€174.29 €139.43
€174.29 €139.43
Retailer price €174.29 Retailer price €139.43
In stock
SKU
33501859
Rating:
100 % of 100

 E-marked (Driving Beam light) and EMC secured
 Super slim with a resting aggressive look!
 4690 actual lumen, 450 m (1 lux)

Juno - Super Slim!

With just over 3 cm (33 mm) in height, this led light bar is remarkably thin. At a distance it is barely visible but the closer you look, the more visible the bars distinctly aggressive and modern exterior becomes. This is a ledbar for those who want the latest, the thinnest, most unobtrusive, but that still fits nicely on the car and provides that attractive added value.

And of course, with the amount of light that will make your high beams full of shame! 4690 actual lumens emit from 18 OSRAM LEDs.



What more is needed?

  • DT-relay: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother with the help of a license plate holder or pipe bracket. See our various accessories for mounting options.



Features:

  • E-mark (E9, ref. 37,5), ECE R112/R10 - Read more about UNECE regulations here
  • ”Driving beam” light pattern (wide and elongated)
  • 7560 lumen (raw), 4690 lumen (effective)
  • Color temperature 5700K (cool white)
  • Range 720 m (0,25 lux), 450 m (1 lux)
  • Two mounting options



Technical data:

  • 90 W (18 x 5 W OSRAM LED)
  • IP68 (water / dust-tight)
  • Aluminum casing and polycarbonate lens
  • 6,35 A at 12 V and 3,03 A at 24 V
  • DT-connector (included)



Measurements:

  • Width: 528 mm
  • Height: 33 mm (exkl mounting)
  • Depth: 68 mm
  • Weight: 1,28 kg



OBS: DT-kontakten får inte klippas eftersom det innebär en ökad risk för fuktskador och garantin då slutar att gälla. DT-kontakt (hane) med skarv medföljer produkten.

More Information
Number of contacts 1 x DT-kontakt
Manufacturer Ledson
Color Xenon white
Warranty 36 Månader
Width 528 mm (exkl. fästen)
Unit st
Light flux 7560 lumen (teoretiska), 4690 lumen (faktiska)
Cable length 260 mm
Depth 68 mm (exkl. fästen)
Power usage 12V/24V 6,35 A vid 12 V och 3,03 A vid 24 V
Height 33 mm (exkl. fästen)
