Complete Atlas LED bar kit (12V)

€290.79 €232.63
€290.79 €232.63
Retailer price €290.79 Retailer price €232.63
Product no longer in stock
SKU
1360047
Rating:
100 % of 100

✓ Complete package with Atlas LED bar, special holder and Ledson Connect!
✓ Range 810m (0.25 lux), 405m (1 lux) with Driving Beam (E-marked)
✓ Atlas is equipped with stylish position light along the center of the bar

Power with position light - all in one package!

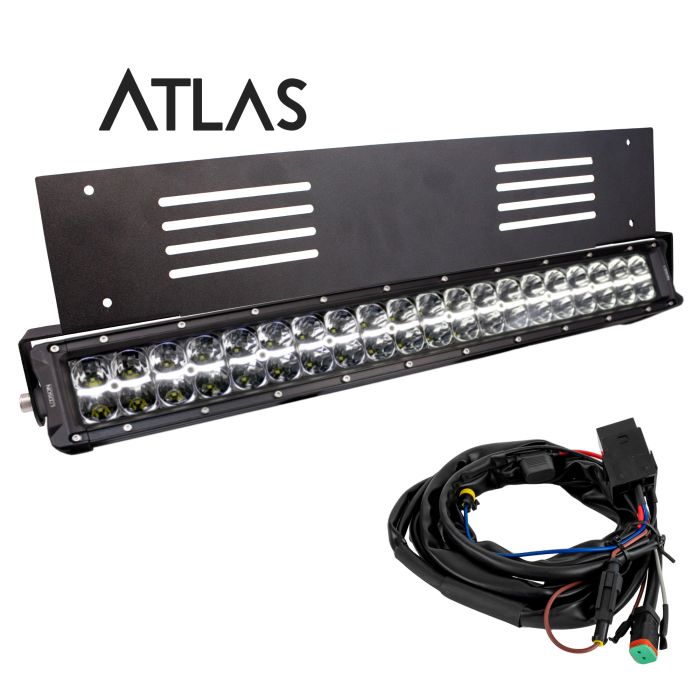

You get a LED bar with number-plate holder that is custom made for this particular bar, ie with a perfect fit. The supplied DT relay kit also allows you to either turn on the LED bar with your existing main beam (as most prefer) or steer the bar with an on and off button.

LEDSON Atlas is an E-marked LED bar in number plate width which makes it ideal to mount above or below the number plate on your car. With its position light in the center of the bar, you will be the eyecandy out on the roads during the daytime ...

... but the power of light comes to its full right in the evening in conjunction with the main beam as the 40's LED's provide a brightness of 1 lux, 405 meters away from the car!



The following is included in the package:



Characteristics Atlas LED-bar:

  • With optional position light
  • E-marked (E24, ref. 40), ECE R112 / R7 / R10 - Read more about UNECE regulations here
  • "Driving beam" pattern (wide and oblong)
  • 10800 lumen (theoretical)
  • Color temperature 6000K (cold white)
  • Scope 810 m (0.25 lux), 405 m (1 lux)
  • 2 x brackets: sliding rear mounted brackets & side mounted legs



Technical data Atlas:

  • 120 W (40 x 3W Cree LED)
  • IP67 (water/dust tight)
  • Aluminum casing and polycarbonate lens
  • Pressure equalization membrane
  • 3-pin DT connector (supplied)



Dimensions & Weight LED bar:

  • Width: 563 mm
  • Height: 78,5 mm
  • Depth: 65 mm (incl brackets)
  • Weight: 3,5 kg

OBS: DT-kontakten får inte klippas eftersom det innebär en ökad risk för fuktskador och garantin då slutar att gälla. DT-kontakt (hane) med skarv medföljer produkten.

Technical information
Power 120W
Manufacturer Ledson
Color Xenon white
Warranty 36 MÃ¥nader
Width 563 mm
Unit pkt
Light flux 10800 lumen (teoretiska)
Cable length 1 m
Depth 65 mm
Power usage 12V/24V 7,7A / 3,8A
Height 78,5 mm
