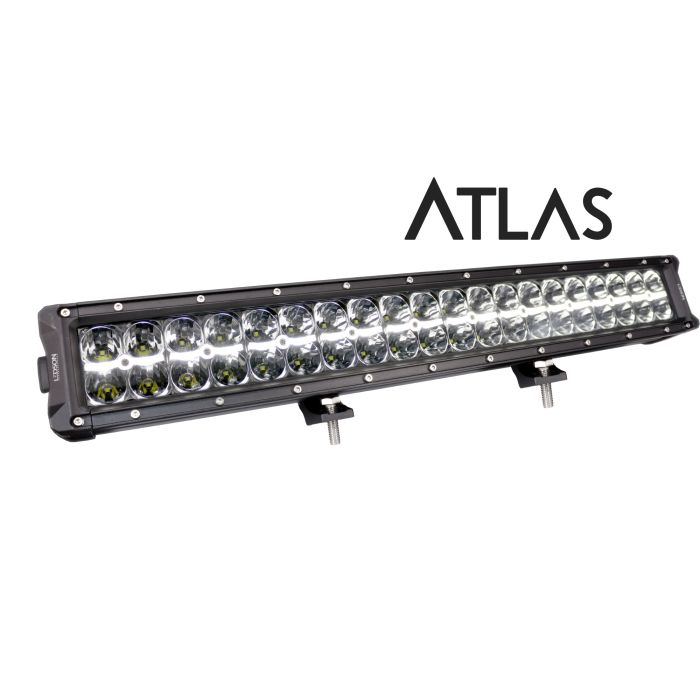

LEDSON Atlas LED bar 21,5" 100W (E marked, Driving Beam, Position light)

€251.89 €201.51
€251.89 €201.51
Retailer price €251.89 Retailer price €201.51
In stock
SKU
33303408
Rating:
100 % of 100

 Atlas is equipped with position light along the center of the bar
 Range 810m (0.25 lux), 405m (1 lux) with driving beam light pattern
 E-marked (E24, ref. 40), ECE R112 / R7 / R10

LEDSON Atlas is an E-marked LED bar in number plate width which makes it ideal to mount above or below the number plate on your car. With its position light in the center of the bar, you will be attractively eye-catching out on the roads during the daytime...

... but the power of light peaks in the evening in conjunction with the main beam as the 40's LED's provide a brightness of 1 lux, 405 meters away from the car!



Characteristics:

  • With optional position light
  • E-marked (E24, ref. 40), ECE R112 / R7 / R10 - Read more about UNECE regulations here
  • "Driving beam" light pattern (wide and oblong)
  • 10800 lumen (theoretical)
  • Color temperature 6000K (cold white)
  • Scope 810 m (0.25 lux), 405 m (1 lux)
  • 2 x brackets: sliding rear mounted brackets & side mounted legs



Technical data:

  • 120 W (40 x 3W Cree LED)
  • IP67 (water / dust-tight)
  • Aluminum casing and polycarbonate lens
  • Pressure equalizer membrane
  • 3-pin DT connector (supplied)



Dimensions & Weight:

  • Width: 563 mm
  • Height: 78,5 mm
  • Depth: 65 mm (excl. brackets)
  • Weight: 3,5 kg
More Information
Number of contacts 1 x DT-kontakt
Manufacturer Ledson
Color Xenon white
Warranty 36 Månader
Width 563 mm
Unit st
Light flux 10800 lumen (teoretiska)
Cable length 1000 mm
Depth 65 mm
Height 78,5 mm
