LED-bar, 9-32V, 21,5", 15x5W Cree (Combo)

€1,993.75 €1,595.00
€1,993.75 €1,595.00
Retailer price €1,993.75 Retailer price €1,595.00
Product no longer in stock
SKU
33305155

✔ Range: 205 meters (0,25 lux)
✔ 5250 lumen
✔ Only 52 mm high!

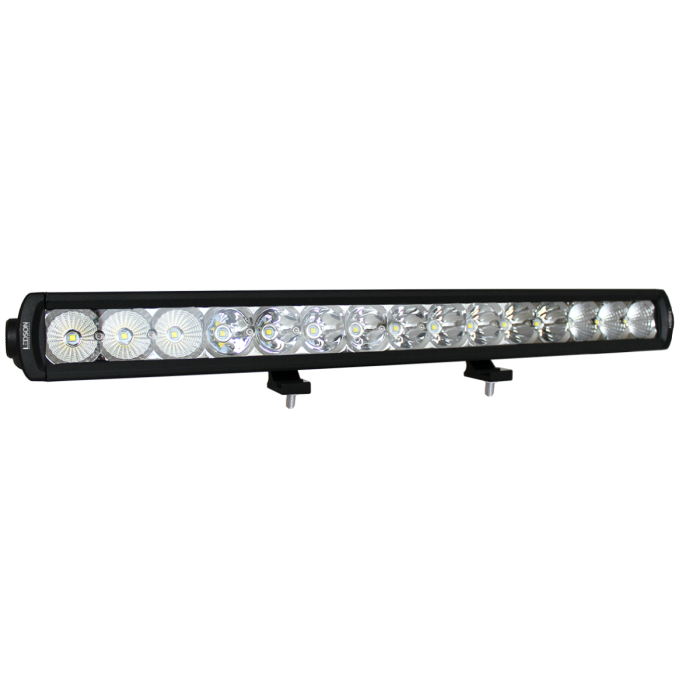

Popular and nimble LED-bar with 15 powerful 5W Cree-diodes. It's IP67-approved, which means it is completely sealed. A larger-sized LED-bar, it's going to give you a lot of extra light. It gives a cool white light (about 6500K), and  5250 lumen. It's supplied with adjustable mounting details, so that you can decide where you want the most light. "Correctly" mounted, it has a range of 205 meters (0,25 lux).

The bar has a combined light pattern, meaning that it both scatters light in a wide area close to the vehicle, but also focuses light far away. The bar also comes with two mounting options; side mounts or back-mounts, so that you can fit the bar just right for your vehicle.

Be careful not to cut the DT-cord, since that will void the warranty and increase the risk of water damage.



Specifications:

Light

  • Light flow: 5250 lumen
  • Range (0,25 lux): 205 m
  • LED: 15 x 5W Cree
  • Light pattern: Combo
  • Colour: Cool white (about 6500K)
  • E-mark: No
  • Expected life span on diodes: 30 000 hours
  • HiLux-technology: No

Housing

  • Weatherproofing: IP67
  • Housing: Aluminium housing, PC lens
  • EMC-proof: Yes
  • Pressure-equalizing membrane: Yes
  • Adjustable mount: Yes
  • Measurements: 524 x 52 x 49 mm (WxHxD)
  • Weight: ~1,32 kg

Electric

  • Voltage: 10-30 V
  • Theoretical output: 75W
  • Actual output: ~55W
Technical information
Power 75W
Manufacturer Ledson
Warranty 24 Months
Use of power 55,2 W
Unit st
Dispersion Array
Light flux 5250 teoretiska lumen, 3990 faktiska lumen
Cable length 0,45 m
Depth 49 mm
Power usage 12V/24V 4,6 / 2,3 A
Height 52 mm
Length (mm) 524 mm
