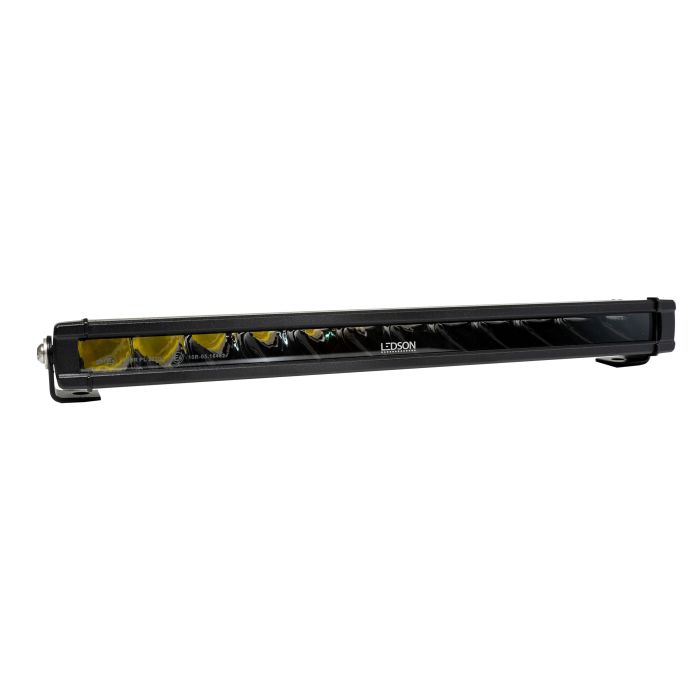

Juno 14" LED bar 60W (Driving Beam)

Juno LED bar 14"

The low construction height makes this bar from Ledson one of the market's most easily placed LED bars! From a distance it is barely visible, but the closer you get, the more visible its distinctly aggressive and modern design becomes. This is an articulated bar for you who want the latest, thinnest and which gives the vehicle an attractive added value. The light bar is E-approved as auxiliary light according to ECE R112.

This is the second smallest of the bars in the Juno series at 14 inches (about 36 cm wide).

What more is needed?

• Ledson Connect: We strongly recommend using our Ledson Connect with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between the bar and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
  Detailed installation instructions are included with the DT relay.
• Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and nicer with the help of a number plate holder or pipe bracket. See our different accessories for mounting options.

Characteristics:

• E-marked ECE R112
• EMC-secured ECE R10
• ”Driving beam” light pattern (wide and oblong)
• 5040 lumen (actual 3186)
• Color temperature 5700K (cold white)
• Range 610 m (0,25 lux), 340 m (1 lux)
• Dual mounting options

 Technical data:

• 60 W (12 x 5 W OSRAM LED)
• IP67 (water/dustproof)
• Aluminum housing with polycarbonate lens
• DT connector 2-pin (supplied)
• Voltage: 10-48 V
• 4,8A at 12V and 2,08A at 24V

Measurements:

• Width: 358 mm
• Height: 33 mm  (excl brackets)
• Depth: 72 mm

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
