Orion10+ Gen2 Quadrinity LED auxiliary package for Volvo FH

Quadrinity = The brightness and design of Orion10+ Gen2 (times 4!)

This package contains four of our popular Orion10+ Gen2 LED auxiliary lights, a practical holder in powder-coated steel and stabilizers for the auxiliary lights.

With its deliciously futuristic design, it's hard not to keep your eyes on the Ledson Orion10+ Gen2... We know how important it is to have an Auxiliary light that not only shines beyond expectations, but is also really nice to look at!

Do you wish to own something that turns you into an eye-catcher? That raises your vehicle's status in the automotive world? But also dutifully pushes away the darkness in the evenings and makes your driving significantly safer? This kit with Ledson10+ LED Auxiliary might be perfect for you!

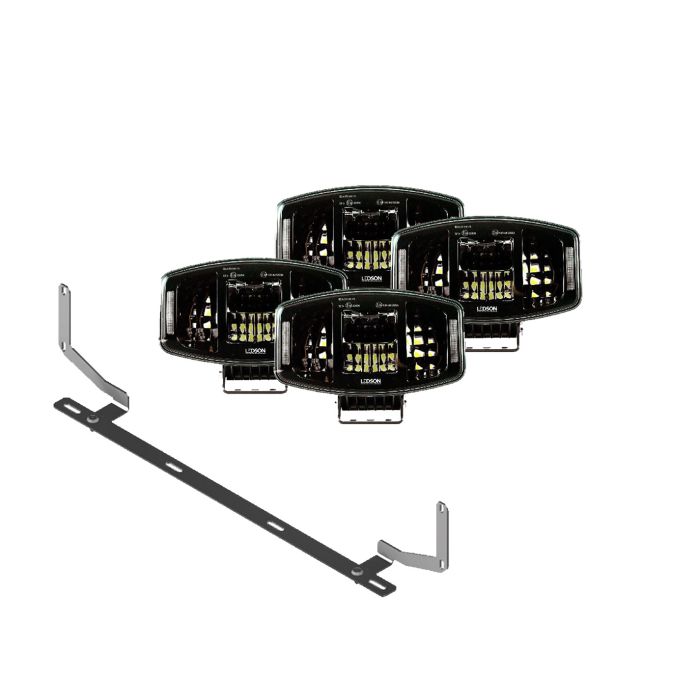

Following is included in the kit:

• 4 x Orion10+ Gen2 LED-auxiliary Light (artnr 33490427)
• Custom-made mounting kit Scania Next Gen
• Bolts and screws for attaching your auxiliary lights
• DT connectors (4-pin) - one for each auxiliary light
• Installation instructions

Driving Beam- beam pattern

Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Stone chip protection and snow filter

Our Orion10+ Gen2 is already equipped with a durable lens, but if you really care about your auxiliary lights having a long life, free from stone chips and scratches, we recommend our stone chip protectors. A cheap and easy way to give your lights an extra layer of protection!

Specifications (per auxiliary light):

• With position light, yellow-orange or xenon white (connect the color you want)
• Driving beam beam pattern that mimics and enhances the vehicle's ordinary beam pattern
• E-marked: E9 (Ref. 37,5), ECE R112 / R10 / R7 (white position light)
• Range: 850 m (0,25 lux), 444 m (1 lux)
• EMC secured
• 10000 lumen (raw), 8500 lumen (actual)
• Cold white light (6000 K)
• ETM (Electronic Thermal Management) - adjusts the strength of the diodes depending on how hot they are for optimal lifespan
• Side reflective optical system
• Pressure equalization membrane
• Aluminum heatsink
• Adjustable bracket in stainless steel
• Lexan polycarbonate front cover
• 24 month warranty

Technical data (per auxiliary light):

• 100W (4 x 25W LED)
• IP69K (water and dust proof)
• DT connector 4 pin supplied
• Voltage: 9-36 V
• Main light load: 4A @ 12V and 2A @ 24V

Measurements (per auxiliary light):

• Width: 247 mm
• Height: 141 mm (176 mm incl bracket)
• Depth: 92 mm
• Weight: 1,82 kg
• Cable length: 650 mm

Installation instructions for cables (detailed instructions included with the product):

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- ground)
• White: Position light (+) white light
• Yellow: Position light (+) yellow-orange light

NOTE: The DT connector must not be cut as this results in an increased risk of moisture damage and the warranty then ceases to apply.
