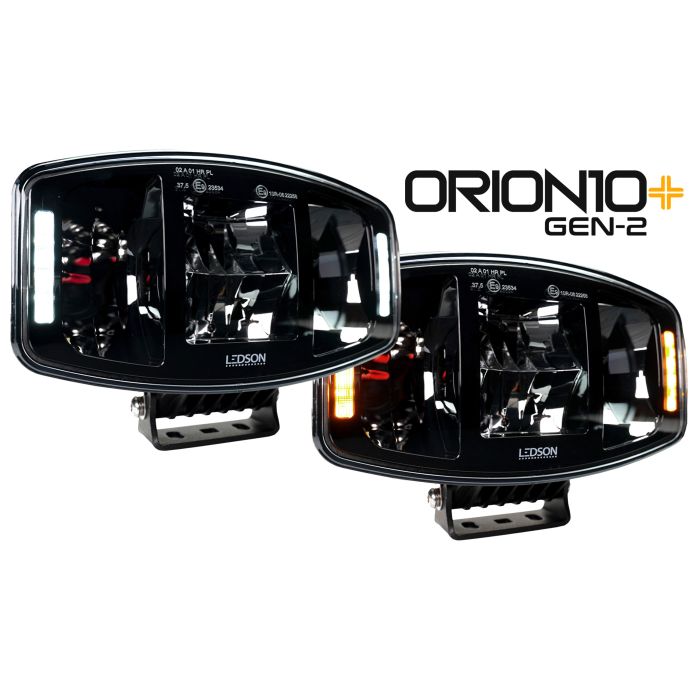

Orion10+ Gen2 LED Auxiliary Light 100W Yellow / White position light (E-marked, Driving Beam)

€213.09 €170.47
€213.09 €170.47
Retailer price €213.09 Retailer price €170.47
Soon in stock
SKU
33490427

 Futuristic design with a striking position light
Orion10+ Gen2 has white or amber position light (optional)
 E-marked ECE R112 / R10 / R7, 444m at 1 lux

When futuristic design meets raw power...Ledson Orion10+ Gen 2

With its futuristic design, it's hard not to get caught by the look of Ledson Orion10+ Gen2 ... We know how important it is with an auxiliary light that not only performs above expectations, but is also nice to look at. Do you want to own something that transforms you into an eye catcher? Something that raises your vehicle's status in the car world? But that also dutifully pushes away the darkness in the late evenings and makes your driving much safer?

Of course, we have ensured that an auxiliary light that owns tomorrow's design also has large amounts of light! 8500 actual lumens and 1 lux brightness at 444 meters and 0.25 lux brightness at 850 meters (per auxiliary light) gives you the visibility ahead on the road that you previously lacked!

In addition to its beautiful design, the auxiliary light is also equipped with a stylish position light that can be set between xenon white and amber: you choose which one you want. If you get tired of one color with time, you just switch to the other one. Orion10+ Gen2 has a range of E-markings ECE R112 / R10 / R7, 8500 actual lumens, 6000K light temperature for a modern look, ETM, EMC, side reflective optical system and more ....with great performance, Orion10+ Gen2 leaves you with that must-have-feeling!

Thanks to its size and design, Ledson Orion10+ Gen2 fits really nicely mounted on all types of vehicles.



Driving Beam light image

Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.



Mounting on vehicle

  • DT-relay: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and more stylish using a number plate holder.

 TIP: Also see our quick connector for relay with ready connectors, no damage to the car's original cabling (no power thief needed). Quick and easy installation!



Specifications:

  • With position light, yellow-orange or xenon white (use the color you desire)
  • Driving beam light that mimics and reinforces the vehicle's regular light
  • E-marked E9 (Ref. 37,5), ECE R112 / R10 / R7 (white position light) - Read more about UNECE regulations here
  • Range: 850 m (0,25 lux), 444 m (1 lux)
  • EMC secured (does not disrupt the radio)
  • 10000 lumen (raw), 8500 lumen (effective)
  • Cold white light (6000 K)
  • ETM (Electronic Thermal Management) - adjusts the diode's strength depending on how hot they are for optimum life
  • Side reflecting optical system
  • Pressure relief membrane
  • Aluminum alloy heat-sink
  • Adjustable bracket in stainless steel
  • Lexan polycarbonate front cover
  • 36 month warranty



Technical data:

  • 100W (4 x 25W LED)
  • IP69K (water/dust-proof)
  • DT connector / DT-adapter 2-4 pin supplied with the product
  • Voltage 9-36 V
  • Load 6,8 A @ 12 V and 3,4 A @ 24 V



Measurement & weight:

  • Width: 247 mm
  • Height: 141 mm (176 mm incl mounting)
  • Depth: 92 mm
  • Weight: 1,82 kg



Supplied:

  • Ledson Orion10+ Gen2 LED auxiliary light8"
  • Bracket, bults and screws to fasten the light
  • DT connector (4-pole) do not forget to buy along DT-reläkablage
  • Installation instructions



Cable installation (detailed installation instructions included):

  • Red: Light (+)
  • Black: Light / Position light (- ground)
  • White: Position light (+)

NOTE: The DT connector must not be cut as it involves an increased risk of moisture damage and the guarantee then expires..

More Information
Manufacturer Ledson
Warranty 36 Månader
Width 247 mm
Unit st
Light flux 10 000 lumen (teoretiska), 8500 lumen (faktiska)
Cable length 650 mm
Depth 92 mm
Power usage 12V/24V 6,8 A @ 12 V och 3,4 A @ 24 V
Height 141 mm (176 mm inkl fäste)
