Sarox9+ Trinity LED auxiliary package (12 V)

€688.79 €551.03
€688.79 €551.03
Retailer price €688.79 Retailer price €551.03
In stock
SKU
1360065

✓ Our Sarox9 in "Trinity" - A complete all-you-need package!
✓ Three Sarox9+, Ledson Connect & a practical holder
✓ 30,600 actual lumens, a light that goes all the way!

Sarox9 + Trinity = The impressive power of Sarox9, times 3

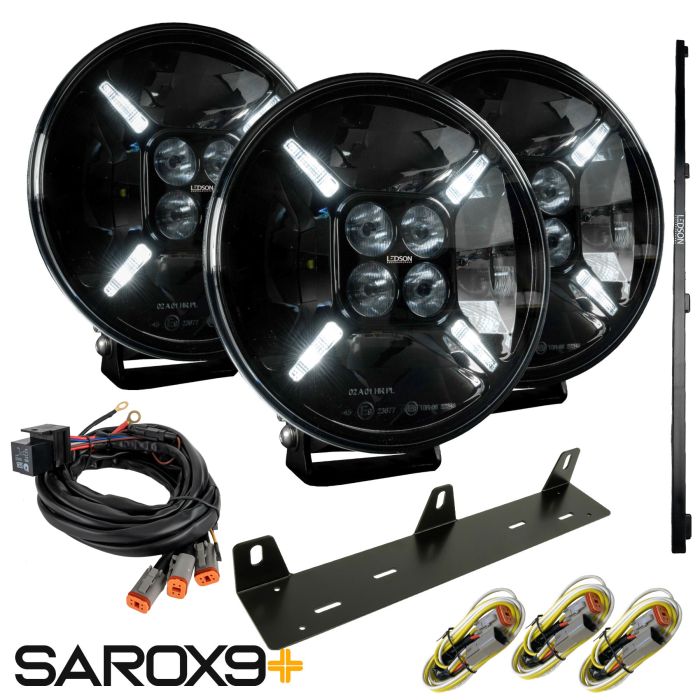

This package contains three of our popular Ledson Sarox9+, a practical holder in powder-coated steel + the wiring needed and locking strip for the license plate.

Sarox's contemporary design is a combination of stylish and progressive, while the inside of the auxiliary light impresses with quality components that make all the difference when you go out and drive in the dark. Comes with a 36 month warranty.

TIP: See also our quick coupling for relay kit with finished connectors, no damage to the car's original cabling (no power thief needed). Quick and easy installation!



The following is included:

Plus:

  • Bolts and screws to secure the auxiliary light with either one or two attachment points
  • DT connectors (4-pole) - one for each extra light
  • Installation instructions



Driving Beam light image

Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.



Specifications:

  • With position light, yellow-orange or xenon white (connect the color you want)
  • Combo beam pattern
  • E-marked ECE R112 (Ref. 45), R10 / R7 (white position light)
  • Range: 938 m (0,25 lux), 469 m (1 lux)
  • EMC secured
  • 12000 lumen (raw), 10200 lumen (actual)
  • Cold white light (5700K)
  • TIR (Total Inner Reflection)
  • ETM (Electronic Thermal Management)
  • Side reflective optical system
  • Pressure equalization membrane
  • Aluminum heatsink
  • Adjustable bracket in stainless steel
  • Lexan polycarbonate front cover
  • Polycarbonate Lens
  • 36 month warranty



Technical data:

  • 120W (4 x 20W Cree LED + 4 x 10W Cree LED)
  • IP69K (water and dust proof)
  • DT connector 4 pin supplied
  • Voltage 9-36 V
  • Main light load: 8.1A @ 12V and 4.4A @ 24V
  • Position light load: 0,9A



Dimensions & weight:

  • Width: 218 mm
  • Height: 218 mm (233 mm incl bracket)
  • Depth: 84 mm
  • Cable length: 42 cm
  • Weight: 1,8 kg



Installation instructions for cables (detailed instructions included with the product):

  • Red: Auxiliary light (+)
  • Black: Auxiliary light / Position light (- ground)
  • White: Position light (+) white light
  • Yellow: Position light (+) yellow-orange light

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and the warranty will cease to apply.

Technical information
Manufacturer Ledson
Color Xenon white
Warranty 36 MÃ¥nader
Use of power Per extraljus: 92,4 W
Unit pkt
Power usage 12V/24V Per extraljus: 7,7 A @ 12 V och 3,6 A @ 24 V
