Sarox7+ Qaudrinity LED auxiliary light kit (12V)

Sarox7+ Quadrinity = The impressive power of Sarox7+, times 4

This package contains four of our popular Ledson Sarox7+, a practical holder in powder-coated steel, the wiring needed and locking strip for the license plate.

Sarox's contemporary design is a combination of stylish and progressive, while the inside of the auxiliary light impresses with quality components that make all the difference when you go out and drive in the dark. Comes with a full 36 month warranty.

TIP: See also our quick coupling for relay kit with finished connectors, no damage to the car's original cabling (no power thief needed). Quick and easy installation!

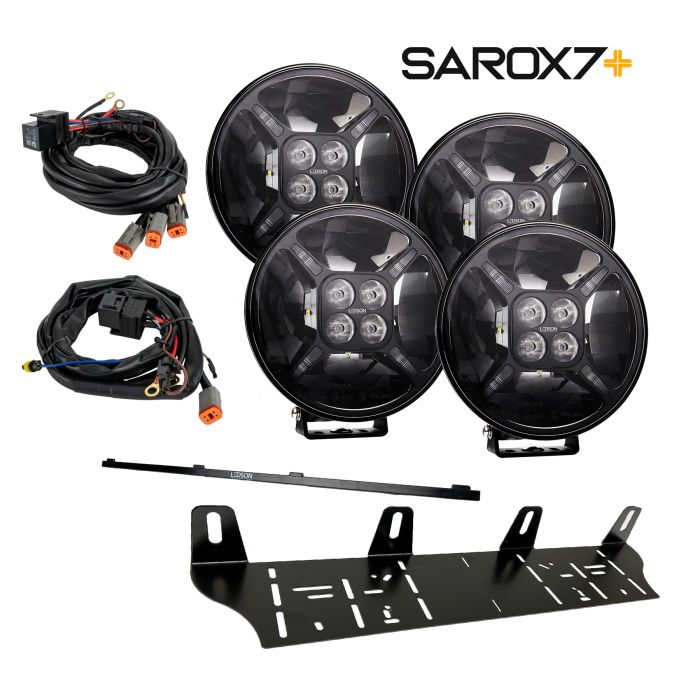

Package includes:

• 4 x Sarox7+ LED auxiliary light (artno 33491218)
• 1 x Auxiliary light mounting plate (artno 3346074)
• 1 x Ledson Connect with 3 x DT (artno 7801005)
• 1 x Ledson Connect with 1 x DT (artno 7801004)
• 1 x locking strip for registration plate (artno 960202)

Extras:

• Bolts and screws to secure the auxiliary light with either one or two attachment points
• DT connectors (4-pole) - one for each extra light
• Installation instructions

Driving Beam light image

Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Specifications (per auxiliary light):

• With position light, yellow-orange or xenon white (connect the color you want)
• Combo beam pattern
• E-marked: ECE R112 (Ref. 37,5), R10 / R7 (white position light)
• Range: 812m (0,25 lux), 406m (1 lux)
• EMC secured
• 6 000 lumen (raw), 4 800 lumen (actual)
• Cold white light (5700K)
• TIR (Total Inner Reflection)
• ETM (Electronic Thermal Management)
• Side reflective optical system
• Pressure equalization membrane
• Aluminum heatsink
• Adjustable bracket in stainless steel
• Lexan polycarbonate front cover
• Polycarbonate Lens
• 36 month warranty

Technical data (per auxiliary light):

• 60W (4 x 10W LED + 4 x 50W LED)
• IP69K (water and dust proof)
• DT connector 4 pin supplied
• Voltage: 9-36 V
• Main light load: 4A @ 12V and 2A @ 24V

Measurements (per auxiliary light):

• Width: 180 mm
• Height: 180 mm (192 mm incl bracket)
• Depth: 68 mm
• Cable length: 42 cm
• Weight: 1,15 kg

Installation instructions for cables (detailed instructions included with the product):

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- ground)
• White: Position light (+) white light
• Yellow: Position light (+) yellow-orange light
