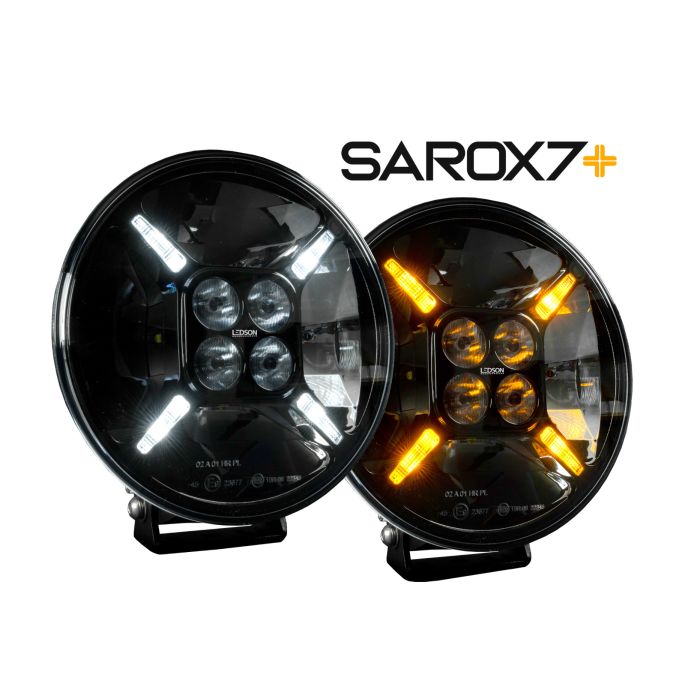

LEDSON Sarox7+ LED auxiliary light 60W

Ledson Sarox7+ is the little brother of Sarox9 + and is well suited for the slightly smaller vehicle, or if you want an auxiliary light that simply does not fill up too much space in the front of the vehicle. This slightly smaller auxiliary light also has four strong LEDs as position lights and allows you to choose between xenon white or yellow-orange, just like Sarox9+ and the rest of our auxiliary lights in the "+ series".

Sarox's design is a combination of stylish and progressive, while the inside of the light impresses with quality components that make all the difference when you drive in the dark.

How about: 1 lux brightness at 406 meters and 4800 actual lumens, protection against harsh climates on our Nordic roads with IP69K classification, E-markings (ECE R112 / R10 / R7), automatic pressure equalization, electronic heat management for optimal LED performance and life span, heat sink in aluminum, bracket in stainless steel ...

Sarox 7+ has a combo beam pattern

The light has a combined light pattern, meaning that it both scatters light in a wide area close to the vehicle, but also focuses light far away. This beam pattern is ideal if you want a lot of light near the vehicle for the smaller roads but still have the length to light up the road far ahead.

What more is needed?

• Ledson Connect: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
  Detailed installation instructions are included with the DT relay.
• Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and more stylish using a number plate holder.

Specifications:

• With position light, yellow-orange or xenon white (connect the color you want)
• Combo beam pattern
• E-marked ECE R112 (Ref. 37,5), R10 / R7 (white position light) - Read more about UNECE regulations here
• Range: 812 m (0,25 lux), 406 m (1 lux)
• EMC secured
• 6000 lumen (raw), 4800 lumen (actual)
• Cold white light (5700K)
• TIR (Total Inner Reflection)
• ETM (Electronic Thermal Management)
• Side reflective optical system
• Pressure equalization membrane
• Aluminum heatsink
• Adjustable bracket in stainless steel
• Lexan polycarbonate front cover
• Polycarbonate Lens
• 36 month warranty

Technical data:

• 60W (4 x 10W LED + 4 x 5W LED)
• IP69K (water and dust proof)
• DT connector 4 pin supplied
• Voltage 9-36 V
• Main light load: 4A at 12V and 2A at 24V
• Position light load: 0,9A

Dimensions & weight:

• Width: 180 mm
• Height: 180 mm (192 mm incl bracket)
• Depth: 68 mm
• Cable length: 42 cm
• Weight: 1,15 kg

Supplied:

• Ledson Sarox7+ LED light 7"
• Bracket, bolts and screws for attaching the auxiliary light with either one or two attachment points
• DT connector (4-pole)
• DT adapter (2-pole to 3-pole)
• Installation instructions

Installation instructions for cables (detailed instructions included with the product):

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- ground)
• White: Position light (+) white light
• Yellow: Position light (+) yellow-orange light

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and the warranty will cease to apply.
