Pollux9+ Gen2 Quadrinity D&S LED auxiliary package for Volvo FH

Quadrinity D&S = The impressive power of both Pollux9+ Gen2 Driving and Spot beam

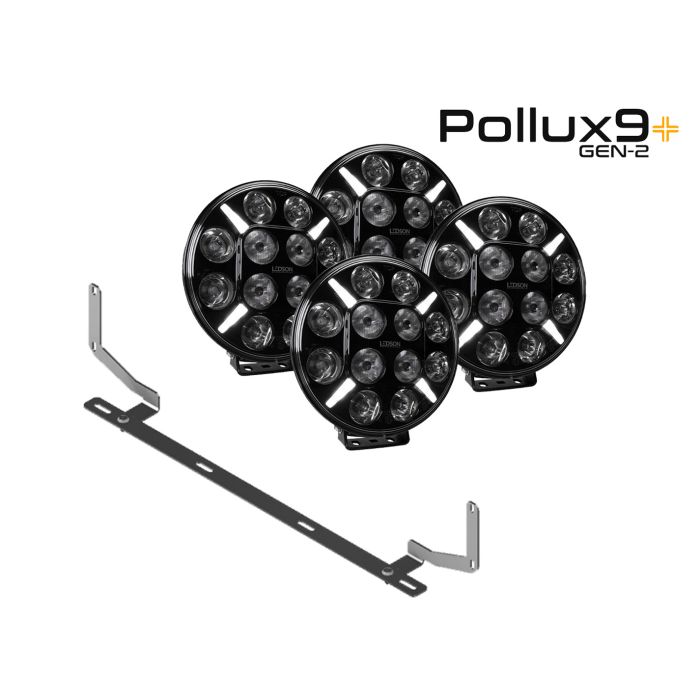

This package contains four of our popular Pollux9+ 2nd Generation (two with Driving beam and two with Spot beam), a practical powder coated steel holder and stabilizers for the auxiliary lights.

Pollux9+ Gen2 is a distinctive and large 9" auxiliary light in modern black for those who want something tougher than the traditional look of the auxiliary lights today. Compared to the Pollux9, the Pollux9+ allow you to choose between xenon white or yellow-orange colour for your position light.

The following is included:

• 2 x Pollux9+ Gen2 Driving Beam auxiliary light (artno. 33491232)
• 2 x Pollux9+ Gen2 Spot Beam auxiliary light (artno. 33491233)
• 1 x Holder in powder coated steel (artno 3346405)
• 4 x Stabilizers for auxiliary lights (artno 97302)

Plus:

• Bolts and screws to secure the auxiliary light with either one or two attachment points
• DT connectors (3-pole) - one for each extra light
• Installation instructions

TIR reflectors

TIR stands for Total Inner Reflection and means that all light is effectively reflected and directed before it is sent out from the reflector. The spill light (the light that is not directed but which disappears "unfocused" from the light without making any real use) is minimized. A traditional reflector directs and focuses most of the light but far from everything.

Driving Beam light image

Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Spot light image

A spot beam has a focused beam of light straight ahead to bring light further down the road in the maximum possible way. This is ideal if you drive a lot of highway or on major roads. Also known as auxiliary beam image.

Specifications (per light):

• E-marked (E8, ref. 37,5 for Driving Beam, ref. 50 for Spot Beam), ECE R112 / R10 / R7 (white position light) - Read more about UNECE regulations here
• EMC secured (does not disturb the radio)
• With position light (4 LEDs) yellow-orange or xenon white (connect the color you want)
• Range Driving Beam: 960 m (0.25 lux), 480 m (1 lux)
• Range Spot Beam: 1148 m (0.25 lux), 574 m (1 lux)
• 12000 lumens (theoretical), 9600 lumens (actual)
• Cold White Light (6500 K)
• TIR optical system (Total Inner Reflection)
• Pressure equalization membrane
• 36 month warranty

Technical data (per light):

• 120 W (12 x 10 W Cree XM-L2 LED)
• Rated power 92,4 W
• IP68 (water / dust tight)
• DT connector (4-pin) included
• Electronic heat management
• Voltage 9-36 V
• Load 7,7 A @ 12 V and 3,6 A @ 24 V

Measurement & weight (per light):

• Width: 218 mm
• Height: 234,5 mm (inkl fäste)
• Depth: 68,5 mm
• Weight: 1,9 kg

Installation instructions for cables (detailed instructions included with the product):

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- ground)
• White: Position light (+) white light
• Yellow: Position light (+) yellow-orange light

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and the warranty will cease to apply.
