Epix9+ Trinity LED auxiliary kit (12 V)

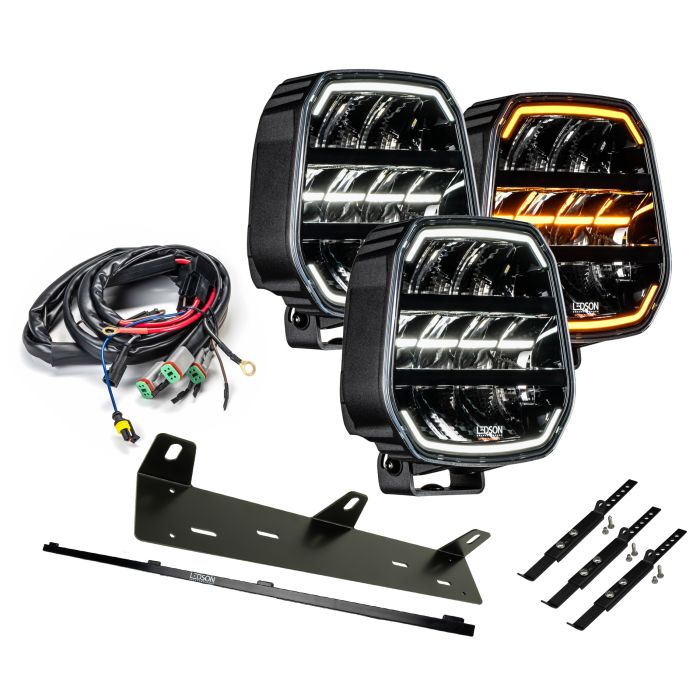

This Epix9+ Trinity package includes three Epix9+ LED auxiliary lights, a convenient powder-coated steel bracket, the necessary Connect wiring, three stabilizers and a locking strip for the license plate.

Ledson developed Swedish design
Epix9+ from Ledson is an innovative series of auxiliary lights that elevate your vehicle to the next level. With a Swedish design (developed in-house by Ledson) and outstanding performance, these auxiliary lights give your vehicle a truly unique and exclusive look that’s guaranteed to attract attention! Experience exceptional brightness and design in perfect harmony.

Halogen high beam: Check out our quick-connect relay kit with pre-made connectors, allowing you to avoid any modifications to the car’s original wiring (no wire taps needed). Quick and easy installation!

LED or xenon high beam: If your car has factory-installed LED or xenon high beams, you’ll also need an XBB Dongle (recommended, wireless for the easiest installation) or a Cannect interface. This enables your car’s high beams and auxiliary lights to turn on and off simultaneously.

The following is included:

• 3 x Epix9+ LED auxiliary light (item 33491250)
• 1 x Holder in powder coated steel (item 3346052)
• 1 x Ledson Connect with 3 DT connectors (item 7801016)
• 3 x auxiliary light stabilizers (item 97302)
• 1 x Locking strip for number plate (item 960202)

Plus:

• Bolts and screws to secure the auxiliary light with either one or two attachment points
• DT connectors (4-pole)
• Installation instructions

Dynamic Position Light
The Epix9+ activates its position light dynamically, with an impressive sweeping motion that elegantly guides the light from one side of the auxiliary light to the other before fully illuminating. This effect gives you and your vehicle a distinct and unique signature.

Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This
Epix9 comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash in just a few easy steps, as shown here. Note: Your auxiliary light is delivered in E-approved mode. Please follow the instructions to activate Powerboost mode.

Features and technical specifications (per auxiliary light):

• Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)
• Range in E-approved mode: 359 m (1 lux)
• Range in Powerboost mode: 773 m (1 lux)
• Driving beam pattern with 20° light spread
• E-marked: ECE R112 (Ref. 30), R7 (White position light) - Read more about UNECE regulations here
• EMC certified: ECE R10 (does not interfere with radio)
• 15,000 lumens (theoretical), 11,000 lumens (actual)
• Neutral white light: 5000K
• ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
• Side-reflecting optical system
• Pressure equalization membrane
• Aluminum heat sink
• Adjustable stainless steel mount
• Polycarbonate lens
• 36-month warranty

Technical data (per auxiliary light):

• 180W (4 x 20W Cree LED + 4 x 10W Cree LED)
• Nominal Power: 154W (Powerboost)
• IP69K (water and dust proof)
• Cable with 4-pin DT Connector
• Voltage: 9-36 V
• Load in E-Approved Mode: 1,5A @ 12V and 0,7A @ 24V (high beam only, no position light)
• Load in High Beam Powerboost Mode: 12,6A @ 12V and 5,6A @ 24V (high beam only, no position light)

Dimensions & Weight (per auxiliary light):

• Width: 225 mm
• Height: 223 mm (incl bracket)
• Depth: 86 mm
• Weight: 2,23 kg

Cable instructions (detailed instructions included)

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- Ground)
• White: Position light (+) White light
• Yellow: Position light (+) Yellow-orange light

Note: The DT connector must not be cut, as this increases the risk of moisture damage and will void the warranty.
