Pollux9+ Gen2 Trinity D LED auxiliary package (12 V)

Trinity = The impressive power of three Pollux9+ Gen2

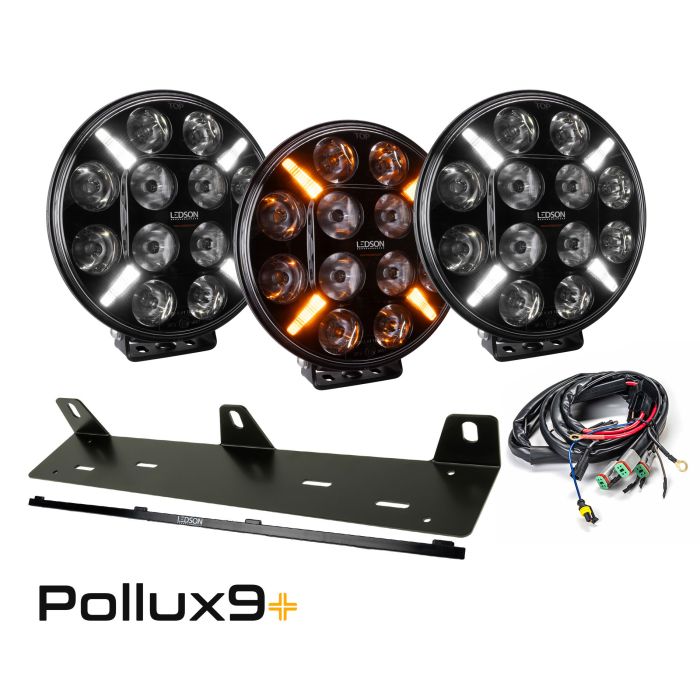

This package contains three of our popular Pollux9+ Driving Beam 2nd Generation, a practical powder coated steel holder, wiring (1 x Ledson Connect) and locking strip for the license plate.

Pollux9+ Gen2 is a distinctive and large 9" auxiliary light in modern black for those who want something tougher than the traditional look of the auxiliary lights today. Compared to the Pollux9, the Pollux9+ allow you to choose between xenon white or yellow-orange colour for your position light. Comes with a 36 month warranty.

The following is included:

• 3 x Pollux9+ Gen2 Driving Beam auxiliary light (artno. 33491232)
• 1 x Holder in powder coated steel (artno. 3346052)
• 1 x Ledson Connect with three DT connectors (artno. 7801005)
• 1 x Locking strip for numbers plate (artno 960202)

Plus:

• Bolts and screws to secure the auxiliary light with either one or two attachment points
• DT connectors (4-pole) - one for each extra light
• Installation instructions

TIR reflectors

TIR stands for Total Inner Reflection and means that all light is effectively reflected and directed before it is sent out from the reflector. The spill light (the light that is not directed but which disappears "unfocused" from the light without making any real use) is minimized. A traditional reflector directs and focuses most of the light but far from everything.

In summary, you get more efficient light on the road and take full advantage of every LED on the auxiliary light with the TIR reflectors!

Driving Beam light image

Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Specifications (per light):

• E-marked (E8, ref. 37,5 for Driving Beam, ref. 50 for Spot Beam), ECE R112 / R10 / R7 (white position light) - Read more about UNECE regulations here
• EMC secured (does not disturb the radio)
• With position light (4 LEDs) yellow-orange or xenon white (connect the color you want)
• "Driving beam" light image or "Spot Beam" light image (select design)
• Range Driving Beam: 960 m (0.25 lux), 480 m (1 lux)
• Range Spot Beam: 1148 m (0.25 lux), 574 m (1 lux)
• 12000 lumens (theoretical), 9600 lumens (actual)
• Cold White Light (6500 K)
• TIR optical system (Total Inner Reflection)
• Pressure equalization membrane
• 36 month warranty

Technical data (per light):

• 120 W (12 x 10 W Cree XM-L2 LED)
• Rated power 92,4 W
• IP68 (water / dust tight)
• DT connector (4-pin) included
• Electronic heat management
• Voltage 9-36 V
• Load 7,7 A @ 12 V and 3,6 A @ 24 V

Measurement & weight (per light):

• Width: 218 mm
• Height: 234,5 mm (inkl fäste)
• Depth: 68,5 mm
• Weight: 1,9 kg

Installation instructions for cables (detailed instructions included with the product):

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- ground)
• White: Position light (+) white light
• Yellow: Position light (+) yellow-orange light

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and the warranty will cease to apply.
