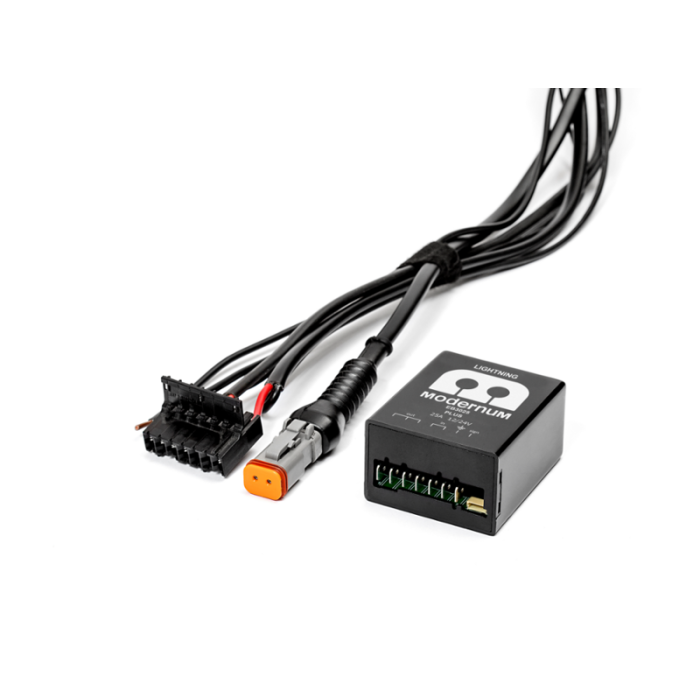

Analog Lightning 3025 auxiliary light relay

Analog Lightning 3025 auxiliary light wiring is intended for modern cars with more sensitive electrical systems, e.g. if they are equipped with bi-xenon with actuator or LED high beam. An actuator motor makes a clear "clunk" sound when the headlight's high beams are switched on.

This analog kit is perfect for the car where you can find an analog signal by the lights.

With a Deutsch DT connector for connection to LED bars with this connector (max 25A / 12V). The wiring kit can handle both positive-controlled and negative-controlled electrical systems and has cables with sealed connectors.

With sophisticated semiconductor technology for smaller current spikes and disturbances during switching on and off compared to a traditional mechanical relay, which otherwise risks affecting more sensitive systems. The wiring kits are protected from moisture and dust according to ISO 16750-4.

NOTE: Needs a classic clean 12V high beam signal for switching on (not intended for CAN-controlled high beams).

Specifications:

• High quality
• 12V
• Max load: 13A
• Maximum load without DT connector: 25A
• Maximum load on switch-on cable: 2mA
• Can handle switching voltage down to 4V
