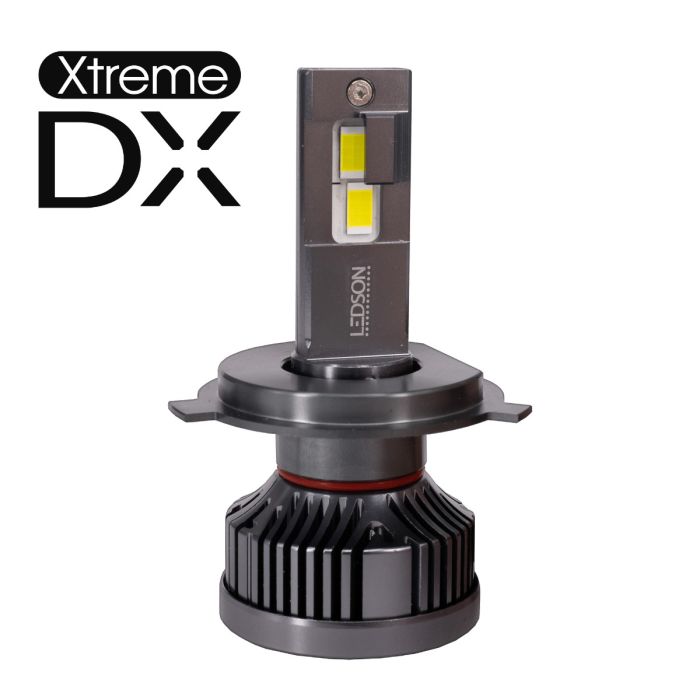

Single kit Xtreme DX LED for xenon and halogen headlights

Ledson Xtreme DX single kit (one bulb) for LED conversion of your original xenon or halogen headlight bulb. The change of bulb is incredibly easy as the Xtreme DX is connected directly to your current original ballast (if you have xenon) or connected to the vehicle's original connector (if you have halogen)! In just a few moments, you have up to 220% stronger light with a sharp light and correct beam pattern, a longer lifespan of about 30,000 hours and immediate ignition. With Xtreme DX it is very easy to give your vehicle a much stronger light and avoid time-consuming bulb changes.

Xtreme DX is a single kit for LED conversion of your original xenon bulb and halogen bulb on your low beam and high beam. Works for motorcycles/cars etc (12V) and trucks (24V) if you have D2Y xenon and for motorcycles/cars etc (12V) if you have halogen.

Xtreme DX single kitdetailed information

• Easily convert original halogen or xenon to LED
• Works for 12V and 24V (for D2Y xenon) and 12V (for halogen)
• Comes with one Xtreme DX LED bulb
• The single kit is perfect for your motorcycle / motorbike, snowmobile, quad / ATV
• Plug and Play - connects directly to your original ballast (if you have xenon)
• Plug and Play - connects directly to your original connector (if you have halogen)
• Up to 220% stronger light
• Sharp beam pattern
• Longer service life (30,000 hours)
• 6000-6500K color temperature
• Up to 6000 lumens per bulb
• Canbus secured (no error messages on most vehicles)
• EMC secured (no interference in the radio)
• Efficient cooling with fan + heat sink
• 36 month warranty

Mounting in the vehicle (xenon):

1. If necessary, loosen the headlight
2. Check how the electrical connector is mounted on the existing bulb and disconnect it
3. Release the spring clip of the HID bulb, then remove the HUD bulb
4. Install the Xtreme DX bulb in the headlight, connect the power unit to the original ballast
5. Place the power unit and ballast in the headlight
6. Finished!

Mounting in the vehicle (halogen):

1. Loosen any screws that hold the bulb holder (some types do not have screws) and then mount the bulb holder in the housing
2. Insert the Xtreme DX bulb into the headlight and rotate to the correct position
3. Finally, connect the bulb to the drive unit and the vehicle's original connector
4. Finished

Xtreme DX single kit is available for these sockets:

• D2Y (part no. 313021)
• H1 (part no. 313121)
• H4 (part no. 313421)
• H7 (part no. 313721)
